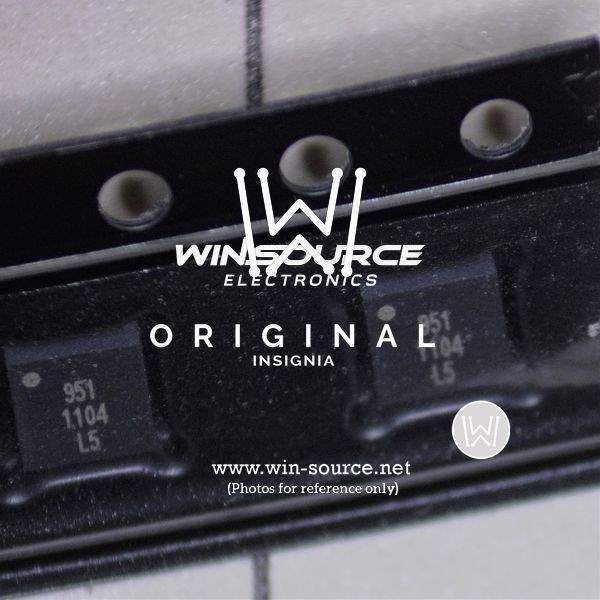

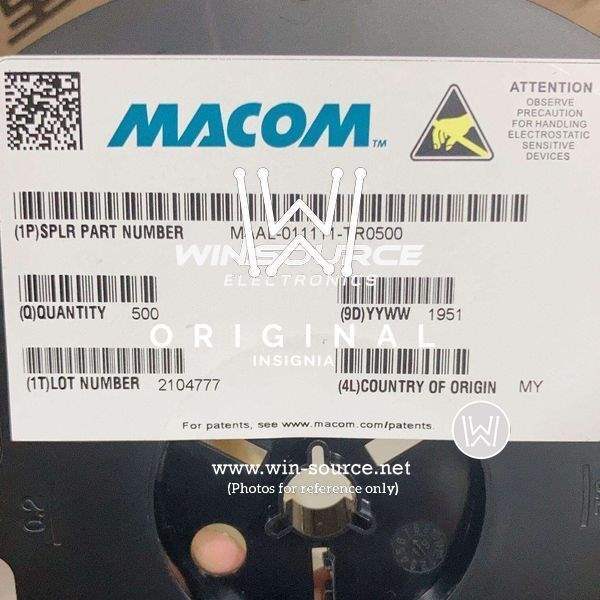

MAAL-011111-TR0500 Real Image MAAL-011111-TR0500 label picture MAAL-011111-TR0500 real image
Same model may have multiple batches, images only for reference.
MAAL-011111-TR0500 Real Image MAAL-011111-TR0500 label picture MAAL-011111-TR0500 real image
MAAL-011111-TR0500 Real Image MAAL-011111-TR0500 label picture MAAL-011111-TR0500 real image
Same model may have multiple batches, images only for reference.

MAAL-011111-TR0500

Part No MAAL-011111-TR0500
Manufacturer M/A-Com Technology Solutions
Catalog RF Amplifiers
Description LOW NOISE AMPLIFIER / Low Noise Amplifier | IC RF AMP 22GHZ-38GHZ 16QFN
Datasheet
MAAL-011111-TR0500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Frequency 22GHz ~ 38GHz
P1dB 5dBm
Gain 19dB
Noise Figure 2.5dB
Supply Voltage (V) 3.3V
Supply Current 55mA
Test Frequency 22GHz ~ 38GHz

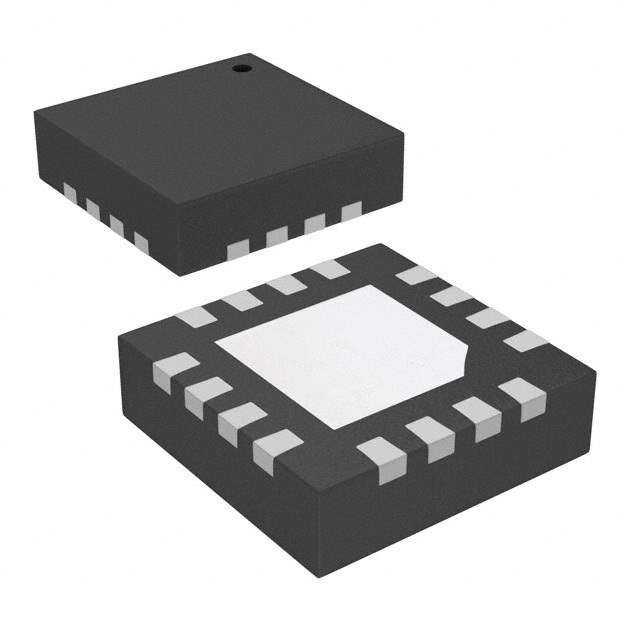

Manufacturer Package 16-VFQFN Exposed Pad
Supplier Device Package 16-PQFN (3x3)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1211514-MAAL-011111-TR0500
Manufacturer Homepage www.macomtech.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MAAL-011111
Introduction Date March 18, 2014
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MAAL-011111-TR0500 CAD Model

Description

The MAAL-011111-TR0500 is a high-performance RF amplifier from M/A-Com Technology Solutions, ideal for use in RF/IF and RFID applications.

  • Frequency Range: 22GHz to 38GHz
  • Gain: 19dB
  • Noise Figure: 2.5dB
  • P1dB: 5dBm
  • Supply Current: 55mA
  • Supply Voltage: 3.3V
  • Package: 16-PQFN (3x3)
  • Estimated EOL Date: 2026. in the open market.
