Same model may have multiple batches, images only for reference.

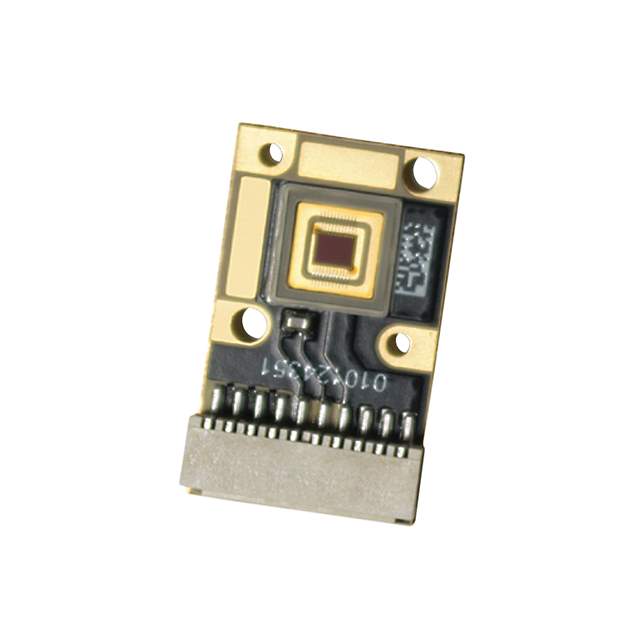

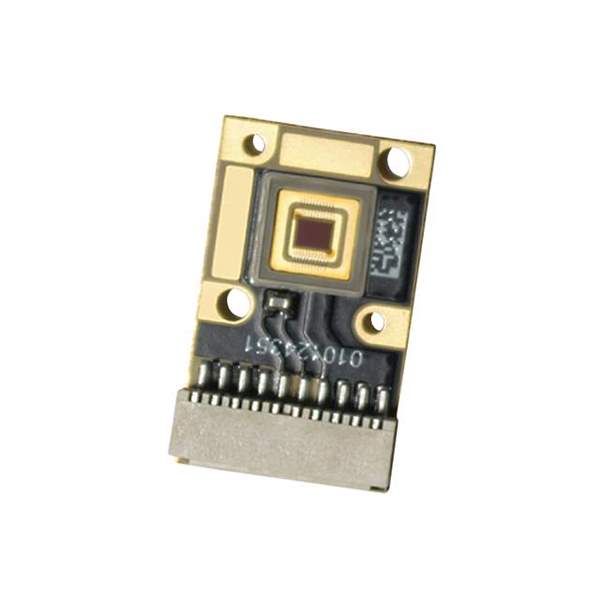

PT-54-RAX-L35-MPL Real Image
Same model may have multiple batches, images only for reference.

PT-54-RAX-L35-MPL

Part No PT-54-RAX-L35-MPL
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD PT54 RED RECTANGLE
Datasheet
PT-54-RAX-L35-MPL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Luminus Devices Inc.
Series PT-54
Packaging Tray
Type LED Module
Color Red
Wavelength 613nm
Configuration Rectangle
Flux @ Current/Temperature - Test 1360 lm (1200 lm ~ 1520 lm)
Current - Test 13.5A
Temperature - Test 40°C
Voltage - Forward (Vf) (Typ) 3V
Lumens/Watt @ Current - Test 34 lm/W
Features With Connector
Dimension 26.50mm L x 16.00mm W
Height 6.40mm
Light Emitting Surface (LES) 2.00mm L x 2.70mm W
Lens Type Flat
Win Source Part Number 792662-PT-54-RAX-L35-MPL
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PT-54-RAX-L35-MPL CAD Model

Description

The Luminus Devices PT-54 LED module is a high-power device that produces a bright red light with a wavelength of 613nm.

  • Wavelength: 613nm
  • Forward Voltage (Vf): 3V
  • Test Current: 13.5A
  • Light Emitting Surface (LES): 2.00mm L x 2.70mm W
  • Luminous Flux: 1360lm @ 40°C
  • Connector: Supplied
  • Height: 6.40mm
