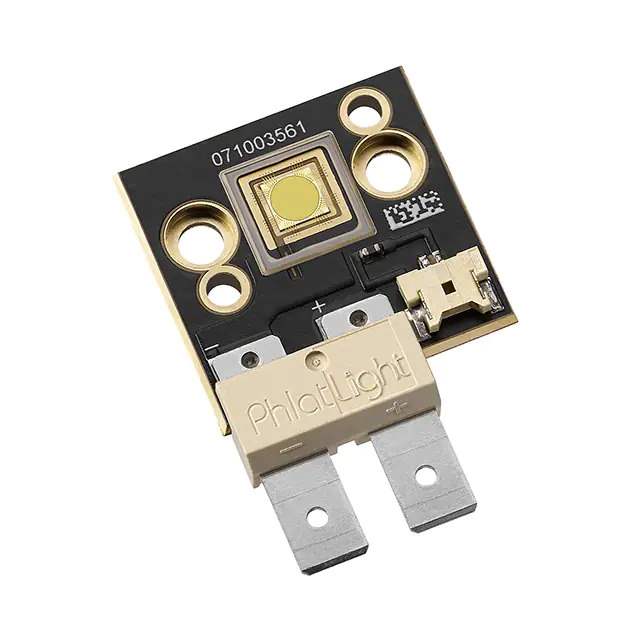

CBT-140-WCS-L16-UB120 Real Image
Same model may have multiple batches, images only for reference.

CBT-140-WCS-L16-UB120

Part No CBT-140-WCS-L16-UB120
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD CBT-140 COOL WHT RECT
Datasheet
CBT-140-WCS-L16-UB120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr Luminus Devices Inc.
Series CBT-140
Package Tray
Product Status Active
Type LED Module
Color White, Cool
Configuration Rectangle
Luminous Flux @ Current/Temperature 4093lm (3955lm ~ 4230lm)
Current - Test 21A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 3.6V
Lumens/Watt @ Current - Test 54 lm/W
Current - Max 28A
CRI (Color Rendering Index) 75 (Typ)
Features With Connector
Size / Dimension 28.00mm L x 42.00mm W
Height 5.70mm
Light Emitting Surface (LES) 4.25mm Dia
Lens Type Flat
Base Product Number CBT-140
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 914820-CBT-140-WCS-L16-UB120
Ultra Librarian 3D Model Ultra Librarian CBT-140-WCS-L16-UB120 CAD Model

Description

The CBT-140 is a high-performance LED module designed for optoelectronics applications.

  • Size: 28.00mm x 42.00mm
  • Height: 5.70mm
  • Maximum Current: 28A
  • Forward Voltage: 3.6V
  • Configuration: rectangular
  • Viewing Angle: wide viewing angle
  • Color Rendering Index (CRI): 75
  • Luminous Flux: 4093lm
  • Luminous Efficacy: 54 lm/W
  • Manufacturer: Luminus Devices Inc.
