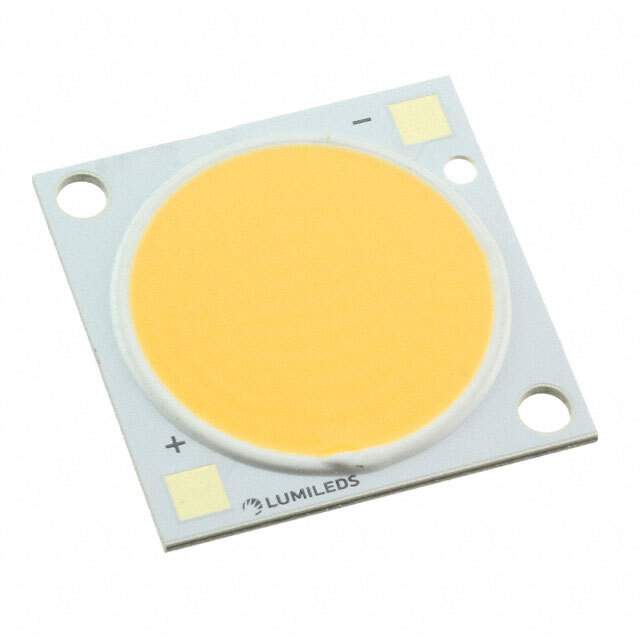

L2C2-40701202E0900 Real Image
Same model may have multiple batches, images only for reference.

L2C2-40701202E0900

Part No L2C2-40701202E0900
Manufacturer Lumileds
Catalog LED Lighting - COBs, Engines, Modules
Description LUXEON CoB Core Range (Gen 2) | LED COB 4000K NEU WHT 70CRI SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Packaging Tube
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Rectangle
Flux at Current/Temperature - Test 1092lm
Current - Test 200mA
Test Temperature Condition 85°C
Voltage - Forward (Vf) 34.5V
Lumens/Watt at Current - Test 158 lm/W
Current - Max 400mA
CRI (Color Rendering Index) 70
Viewing Angle 115°
Parts Dimension 16.00mm L x 19.00mm W
Height 1.50mm
Light Emitting Surface (LES) 9.00mm Dia
Lens Type Flat
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1194161-L2C2-40701202E0900
Manufacturer Homepage www.luxeon.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L2C2-40701202E0900 CAD Model

Description

The Lumileds Chip On Board (COB) component is a high-quality rectangular LED that is perfect for use in a variety of lighting applications.

  • Product: Lumileds Chip On Board (COB)
  • Shape: Rectangular
  • Maximum Current: 400mA
  • Test Current: 200mA
  • Lens Type: Flat
  • Viewing Angle: 115 degrees
  • LES Diameter: 9.00mm
  • Color Temperature: 4000K 3-Step MacAdam Ellipse
  • CRI: 70
  • Length: 16.00mm
  • Width: 19.00mm
  • Height: 1.50mm
