Same model may have multiple batches, images only for reference.

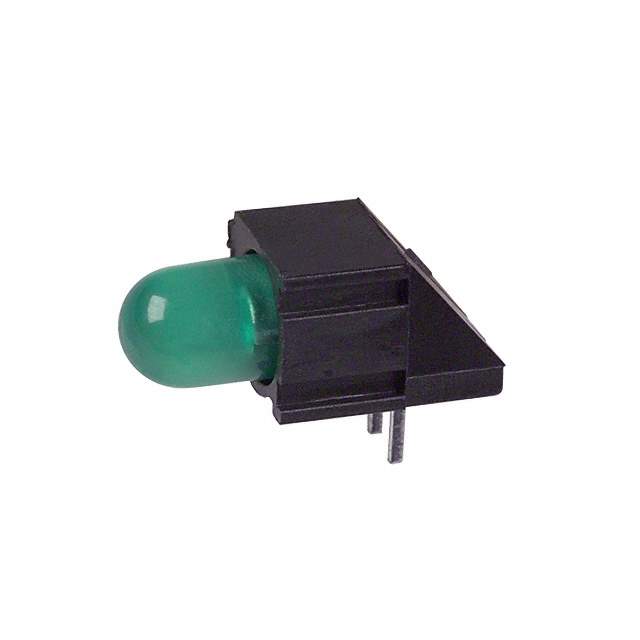

SSF-LXH100MGD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100MGD

Part No SSF-LXH100MGD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA MATING LOWCUR GRNPCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH100MGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 20mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names 67-1228R,Q6558695H,LU20085,SSFLXH100MGD,67-1228
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238220-SSF-LXH100MGD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100MGD CAD Model

Description

The Lumex Opto/Components Inc. LED is a high-quality electronic component that is perfect for use in a variety of applications.

  • Voltage Rating: 2.2V
  • Millicandela Rating: 20mcd
  • Viewing Angle: 60°
  • Wavelength Peak: 565nm
  • Current: 20mA
  • Lens Type: Diffused, Tinted
  • Mounting Type: Through-Hole, Right-Angle
  • Lens Style: Round with Domed Top
