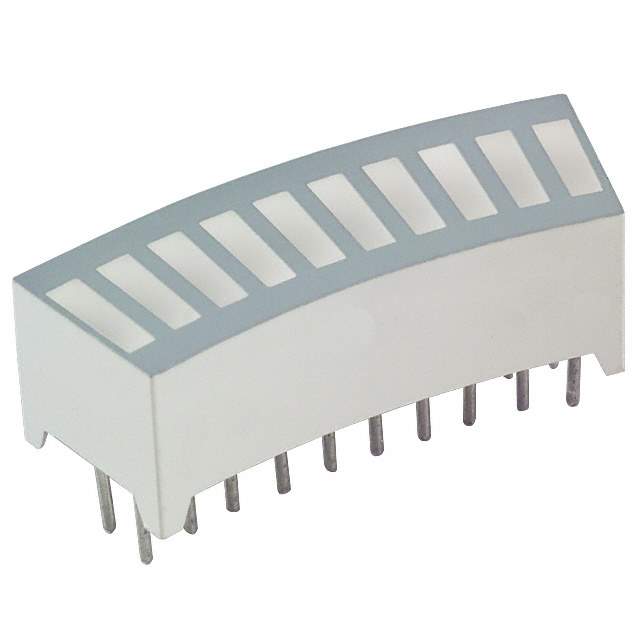

Same model may have multiple batches, images only for reference.

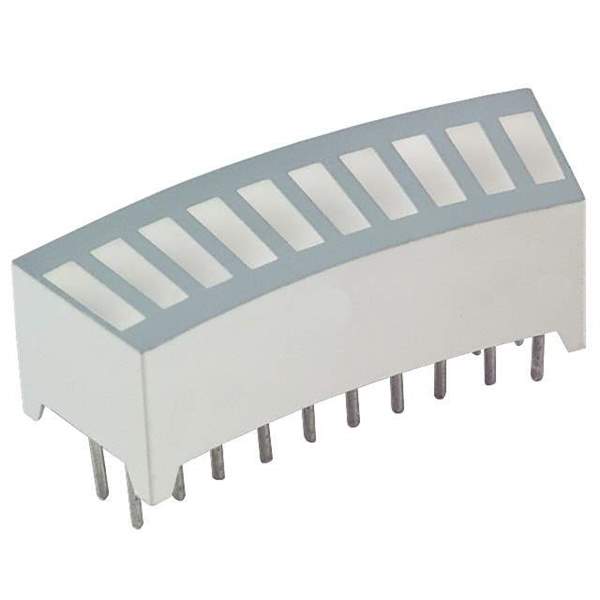

SSA-LXB10SRW-10652 Real Image
Same model may have multiple batches, images only for reference.

SSA-LXB10SRW-10652

Part No SSA-LXB10SRW-10652
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 10-SEG CURVED SUPR RED / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Curved, DIP Red (x 10) Diffused, White 1.7V 30mA Rectangle with Flat Top Through Hole
Datasheet
SSA-LXB10SRW-10652 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 10)
Wavelength - Peak 660nm
Configuration Bar - 10 Curved, DIP
Current 30mA
Millicandela Rating 20mcd
Viewing Angle 160°
Lens Type Diffused, White
Lens Style Rectangle with Flat Top
Voltage Rating 1.7V
Mounting Type Through Hole
Base Product Number SSA-LXB10
Other Names 67-1525R,SSALXB10SRW10652,67-1525
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238202-SSA-LXB10SRW-10652
Ultra Librarian 3D Model Ultra Librarian SSA-LXB10SRW-10652 CAD Model

Description

The Lumex Opto/Components Inc. 1238202-SSA-LXB10SRW-10652 is a bulk package of red LED circuit board indicators that come in a configuration of 10 curved, DIP.

  • Viewing Angle: 160 degrees
  • Millicandela Rating: 20mcd
  • Peak Wavelength: 660nm
  • Voltage Rating: 1.7V
  • Current: 30mA
  • Lens Type: diffused, white
  • Mounting Type: through hole
  • Lens Style: rectangle with a flat top
