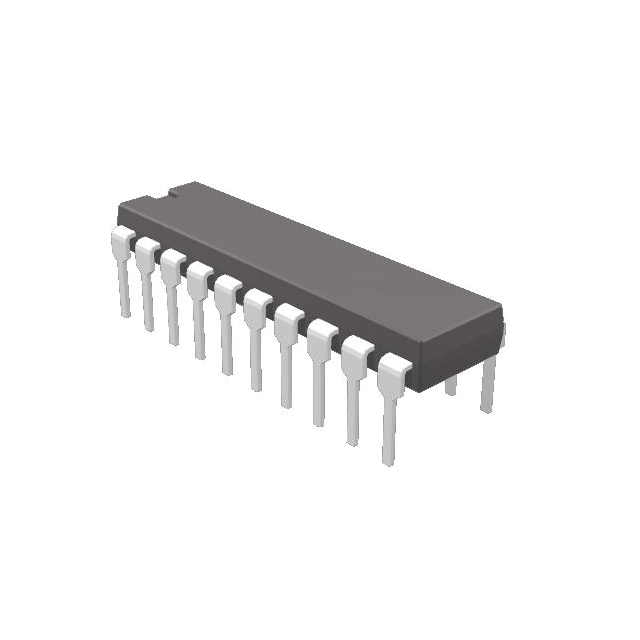

LS7166A Real Image
Same model may have multiple batches, images only for reference.

LS7166A

Part No LS7166A
Manufacturer LSI Computer Systems
Catalog Logic - Counters, Dividers
Description IC QUAD COUNTER 24BIT 20DIP / Counter IC BCD Counter, Binary Counter, Divide-by-N 4 Element 24 Bit Positive, Negative 20-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Counters, Dividers
Mfr LSI/CSI
Package Tube
Logic Type BCD Counter, Binary Counter, Divide-by-N
Direction Up, Down
Number of Elements 4
Number of Bits per Element 24
Count Rate 40 MHz
Trigger Type Positive, Negative
Voltage - Supply 3 V ~ 5.5 V
Temperature Range - Operating 0°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 20-DIP (0.300", 7.62mm)
Supplier Device Package 20-DIP
Other Names 2808-LS7166A
Standard Package 18
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0000
Win Source Part Number 1259076-LS7166A
Ultra Librarian 3D Model Ultra Librarian LS7166A CAD Model

Description

The LS7166A from LSI Computer Systems is an integrated circuit (IC) designed for logic counters and dividers.

  • Number of Elements: 4
  • Bits per Element: 24
  • Type: BCD counter, binary counter, and divide-by-N
  • Trigger Type: Positive or negative
  • Count Direction: Up or down
  • Reset: No
  • Timing: No
  • Count Rate: 40 MHz
  • Voltage Supply: 3 V to 5.5 V
  • Mounting Type: Through Hole
  • Package: 20-DIP
  • MSL Level: 3 (168 hours)
