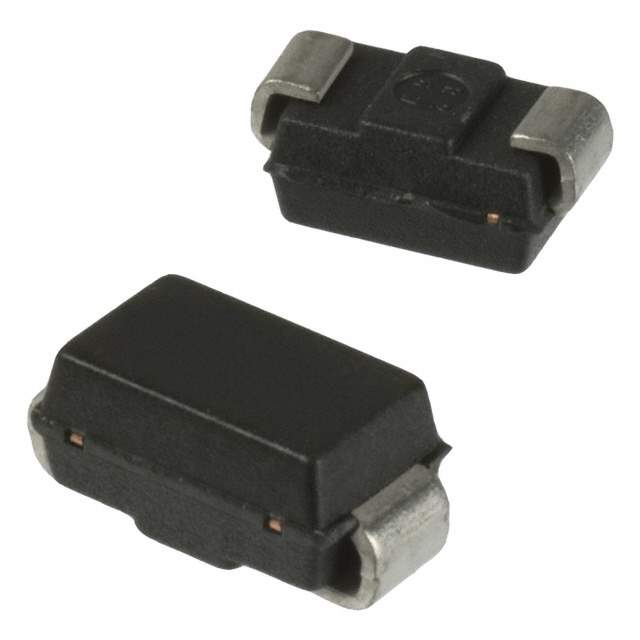

TVA090RSA-L Real Image
Same model may have multiple batches, images only for reference.

TVA090RSA-L

Part No TVA090RSA-L
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description THYRISTOR 90V 100A SMA
Datasheet
TVA090RSA-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Breakover 130V
Voltage - Off State 90V
Voltage - On State 4V
Current - Peak Pulse (8/20μs) 100A
Peak Pulse Current(Ippm) 50A
Current - Hold (Ih) 150mA
Number of Elements 1
Capacitance 40pF
Mounting SMD (SMT)
Dimension DO-214AC, SMA
Win Source Part Number 1114902-TVA090RSA-L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TVA090RSA-L CAD Model

Description

The Littelfuse Inc. 1114902-TVA090RSA-L is a surface mountable TVS Diode designed for circuit protection.

  • Capacitance: 40pF
  • Breakover Voltage: 130V
  • Off-State Voltage: 90V
  • Peak Pulse Current: 100A
  • Hold Current: 150mA
  • Package Type: DO-214AC, SMA
  • Supplied On: A reel
  • Suitability: This diode is suitable for applications where there is a possibility of voltage spikes or surges.
  • Status: It is obsolete and has reached its end of life.
