Same model may have multiple batches, images only for reference.

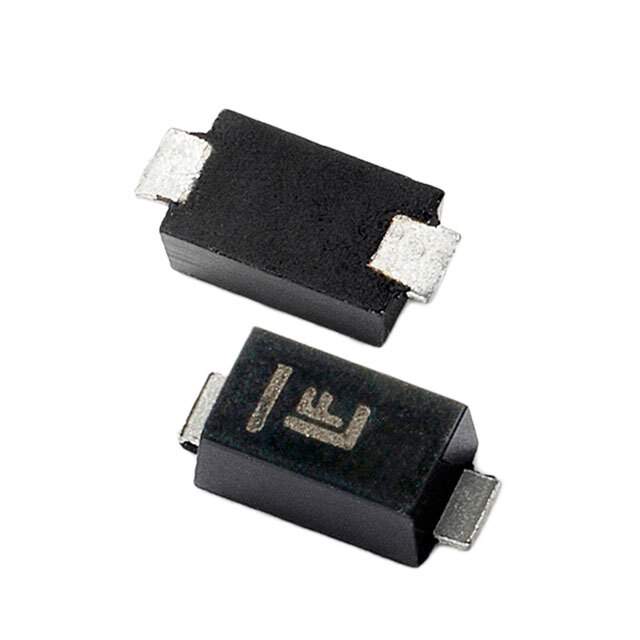

TPSMF4L8.5A Real Image
Same model may have multiple batches, images only for reference.

TPSMF4L8.5A

Part No TPSMF4L8.5A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 8.5VWM 14.4VC SOD123FL
Datasheet
TPSMF4L8.5A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 48 Weeks
Features 14.4V Clamp 25.7A Ipp Tvs Diode Surface Mount SOD-123F
Manufacturer Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMF4L
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package SOD-123F
Case / Package SOD-123F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F7532TR, F7532CT, -TPSMF4L8.5A, F7532DKR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937506-TPSMF4L8.5A
Ultra Librarian 3D Model Ultra Librarian TPSMF4L8.5A CAD Model

Description

The Littelfuse Inc. TPSMF4L8.5A is a surface mount TVS diode that is part of the Automotive, AEC-Q101, TPSMF4L series.

  • Clamp Voltage: 14.4V
  • Peak Pulse Current: 25.7A
  • Package: reel
  • Package: SOD-123F
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Estimated Production Lead Time: 48 weeks
  • ECCN: compliant
  • Popularity: high
  • Quantity per package: 3,000
  • MSL level: 1 (Unlimited)
