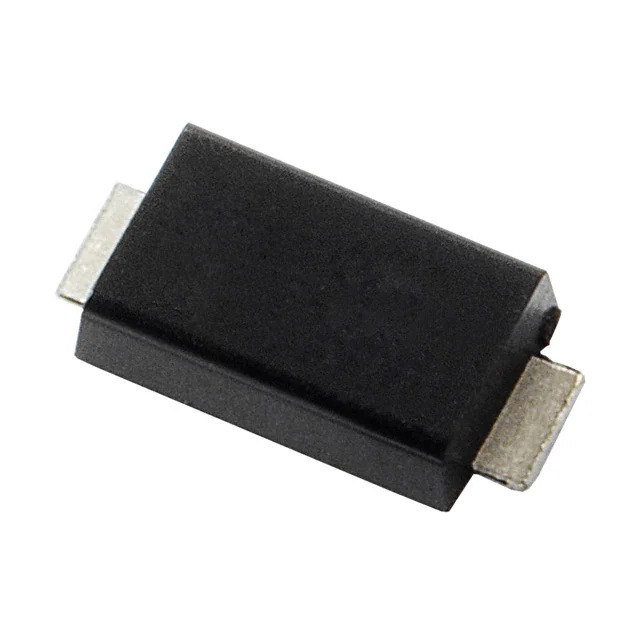

Same model may have multiple batches, images only for reference.

TPSMA6L8.0A

Name: TPSMA6L8.0A
Brand: Littelfuse Inc.
SKU: 1380125
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TPSMA6L8.0A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 8VWM 13.6VC DO221AC
Datasheet	TPSMA6L8.0A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, TPSMA6L
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	8V
Voltage - Breakdown (Min)	8.89V
Voltage - Clamping (Max) @ Ipp	13.6V
Current - Peak Pulse (10/1000µs)	44.2A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Temperature Range - Operating	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	DO-221AC
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1380125-TPSMA6L8.0A
Ultra Librarian 3D Model	Ultra Librarian TPSMA6L8.0A CAD Model

Alternative Products

Description

The Littelfuse Inc. TPSMA6L series is a transient voltage suppressor (TVS) diode designed for circuit protection.

Reverse Standoff Voltage: 8V
Breakdown Voltage: 8.89V
Operating Temperature: -50°C to 150°C
Package: DO-221AC, SMA flat leads
Mounting Type: Surface Mountable
Peak Pulse Current: 44.2A
Peak Power: 600W
Application: Automotive
AEC-Q101: Compliant
Status: Active
Series: Automotive, AEC-Q101, TPSMA6L
