Same model may have multiple batches, images only for reference.

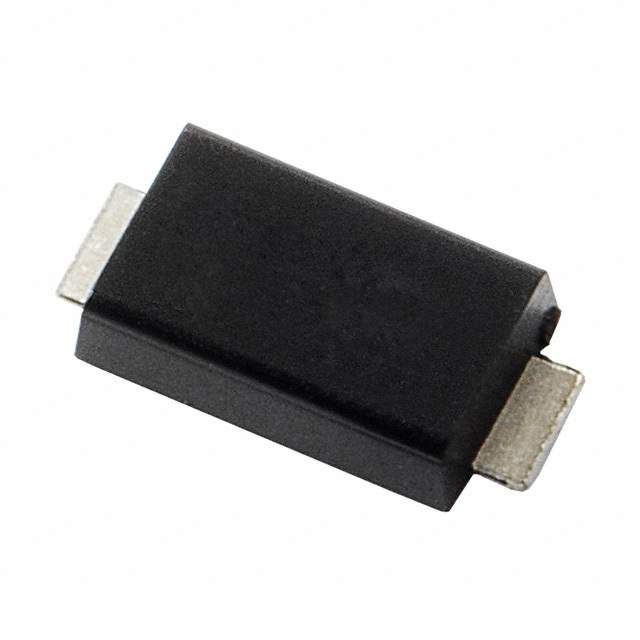

TPSMA6L5.0A Real Image
Same model may have multiple batches, images only for reference.

TPSMA6L5.0A

Part No TPSMA6L5.0A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.2VC SMA
Datasheet
TPSMA6L5.0A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6.4V
Max Clamping Voltage 9.2V
Peak Pulse Current(Ippm) 65.3A
Power Dissipation - Pd 600W
Applications Automotive
Temperature Range - Operating -50°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-221AC
Win Source Part Number 1097364-TPSMA6L5.0A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPSMA6L5.0A CAD Model

Description

The Littelfuse Inc. TPSMA6L5.0A is an active Zener type SMD (SMT) component that is suitable for automotive applications.

  • Win Source Part Number: 1097364
  • Packaging: Reel-TR
  • Stand-off Voltage (Vwm): 5V
  • Minimum Breakdown Voltage: 6.4V
  • Maximum Clamping Voltage: 9.2V
  • Peak Pulse Current (Ippm): 65.3A
  • Power Dissipation - Pd: 600W
  • Temperature Range: -50°C to 150°C (TJ)
  • Case/Package: DO-221AC
  • Supply and Demand Status: Balance
