Same model may have multiple batches, images only for reference.

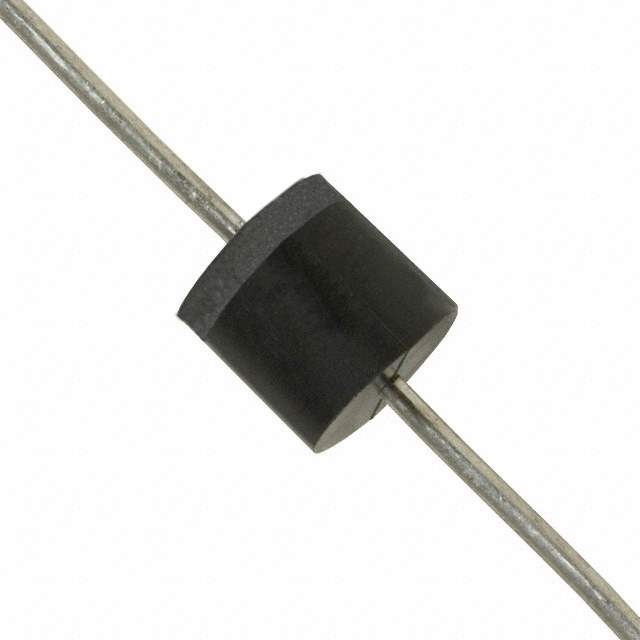

TP5KP14A Real Image
Same model may have multiple batches, images only for reference.

TP5KP14A

Part No TP5KP14A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 14WVM 23.2VC AEC-Q
Datasheet
TP5KP14A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 14V
Minimum Breakdown Voltage 15.6V
Max Clamping Voltage 23.2V
Peak Pulse Current(Ippm) 219.8A
Power Dissipation - Pd 5000W (5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package P600
Win Source Part Number 1006358-TP5KP14A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TP5KP14A CAD Model

Description

The Littelfuse Inc. TP5KP14A is a zener type circuit protection component with a P600 case/package.

  • Case/Package: P600
  • Stand-off Voltage (Vwm): 14V
  • Minimum Breakdown Voltage: 15.6V
  • Maximum Clamping Voltage: 23.2V
  • Peak Pulse Current (Ippm): 219.8A
  • Power Dissipation - Pd: 5000W (5kW)
  • Popularity: Medium
  • Supply and Demand: Balanced
