Same model may have multiple batches, images only for reference.

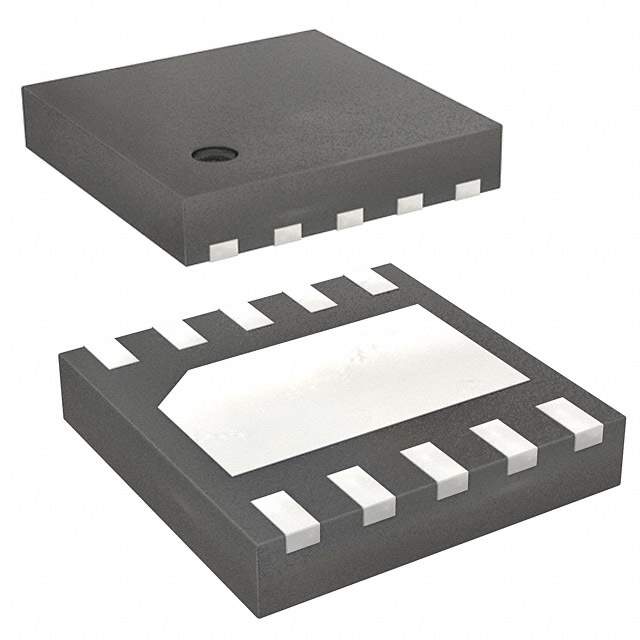

SP4062-04UTG Real Image
Same model may have multiple batches, images only for reference.

SP4062-04UTG

Part No SP4062-04UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 11.5VC UDFN10
Datasheet
SP4062-04UTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 3.3V (Max)
Max Clamping Voltage 11.5V
Peak Pulse Current(Ippm) 20A (8/20μs)
Power Dissipation - Pd 300W
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 10-uDFN (2.6x2.6)
Win Source Part Number 100858-SP4062-04UTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP4062-04UTG CAD Model

Description

The Littelfuse Inc. 100858-SP4062-04UTG is a steering (rail to rail) circuit protection component that is ideal for general-purpose applications.

  • Manufacturer: Littelfuse Inc.
  • Product Name: 100858-SP4062-04UTG
  • Type: Steering (rail to rail) circuit protection
  • Application: General-purpose
  • Mounting Style: SMD (SMT)
  • Case/Package: 10-uDFN (2.6x2.6)
  • Channels: Four unidirectional
  • Power Line Protection: Yes
  • STAND-OFF voltage (Vwm): 3.3V (Max)
  • Maximum clamping voltage: 11.5V
  • Peak pulse current (Ippm): 20A (8/20μs)
  • Power dissipation (Pd): 300W
  • Operating temperature: -40°C to 85°C (TA)
  • Supply and demand: Balanced
