Same model may have multiple batches, images only for reference.

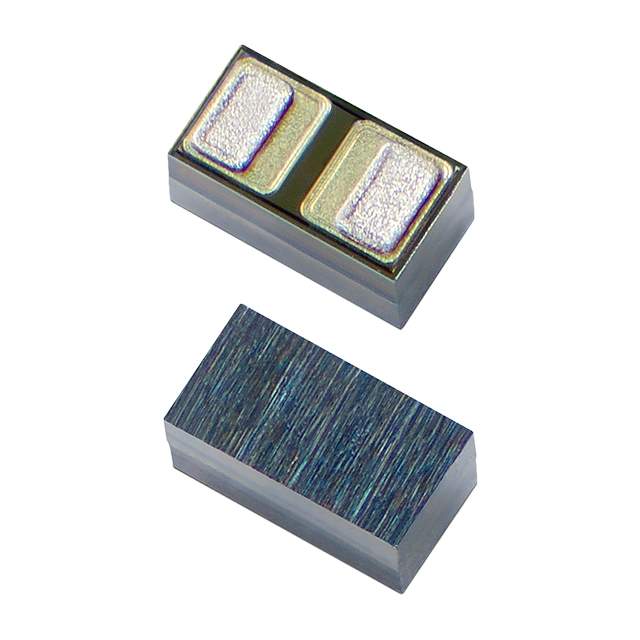

SP24-01WTG-C-HV Real Image
Same model may have multiple batches, images only for reference.

SP24-01WTG-C-HV

Part No SP24-01WTG-C-HV
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 40VC 2FLIPCHIP / 40V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 2-FlipChip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SPXX, SPA®
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 40V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power - Peak Pulse 100W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 13pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 2-XFDFN, FCDFN
Supplier Device Package 2-FlipChip
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F6963CT,F6963TR,-SP24-01WTG-C-HV,F6963DKR
Standard Package 10,000
Win Source Part Number 972850-SP24-01WTG-C-HV
Ultra Librarian 3D Model Ultra Librarian SP24-01WTG-C-HV CAD Model

Description

The SPXX, SPA® series Zener diode is a circuit protection device designed to protect electronic circuits from voltage spikes. The Littelfuse Inc. diode has a maximum reverse standoff voltage of 24V and a minimum breakdown voltage of 26.7V.

  • Maximum Reverse Standoff Voltage: 24V
  • Minimum Breakdown Voltage: 26.7V
  • Clamping Voltage: Up to 40V @ peak pulse power of 100W
  • Package: Tape and reel
  • Mounting: SMD (SMT) mountable
  • Capacitance: 13pF @ 1MHz
  • Peak Pulse Current: 3A (8/20μs)
  • Suitable for: General-purpose applications
  • Standard Package: 10,000
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Supplier: Littelfuse Inc.
