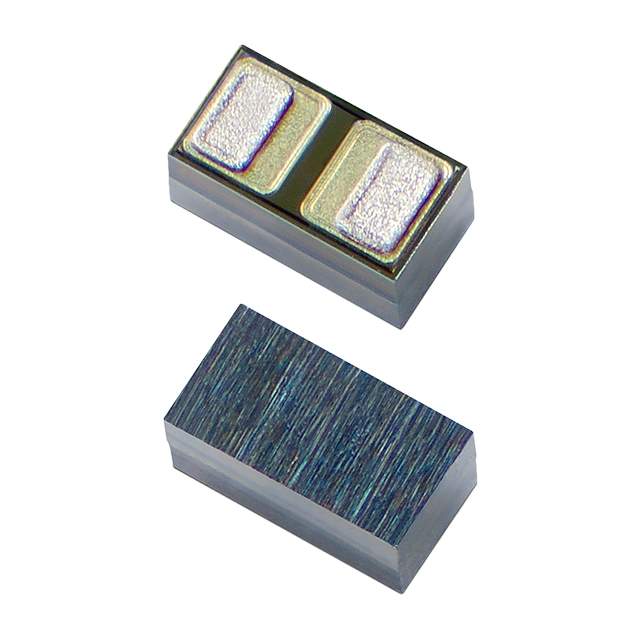

SP12-01WTG-C-HV Real Image
Same model may have multiple batches, images only for reference.

SP12-01WTG-C-HV

Part No SP12-01WTG-C-HV
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19VC 2FLIPCHIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 39 Weeks
Features 19V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount 2-FlipChip
Manufacturer Littelfuse Inc.
Series SPXX, SPA®
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 2-XFDFN, FCDFN
Case / Package 2-FlipChip
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F6961DKR, F6961CT, F6961TR, -SP12-01WTG-C-HV
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934703-SP12-01WTG-C-HV
Ultra Librarian 3D Model Ultra Librarian SP12-01WTG-C-HV CAD Model

Description

The Littelfuse SP12-01WTG-C-HV is a surface mount TVS diode that has a clamping voltage of 19V and a peak pulse current of 8A (8/20µs).

  • Clamping Voltage: 19V
  • Peak Pulse Current: 8A (8/20µs)
  • Package: 2-FlipChip
  • Series: SPXX, SPA®
  • Operating Temperature Range: -40°C to 125°C
  • Supplied In: Reel of 10000 pieces
  • Category: Circuit Protection
