Same model may have multiple batches, images only for reference.

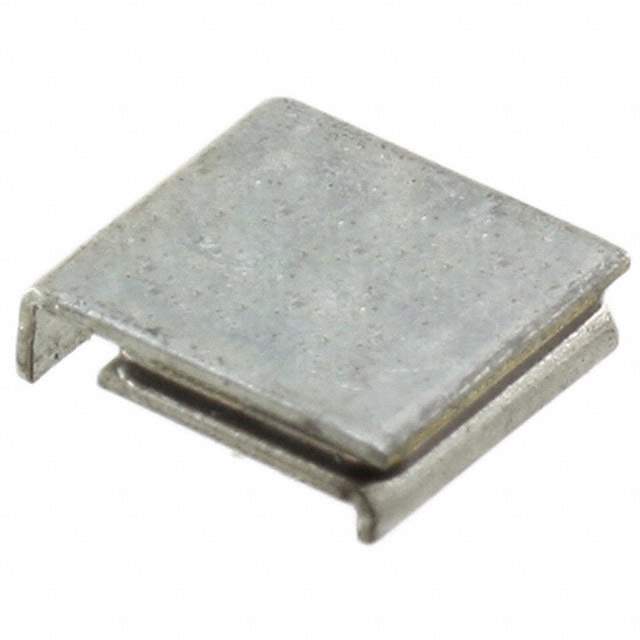

SMD150F-2018-2 Real Image
Same model may have multiple batches, images only for reference.

SMD150F-2018-2

Part No SMD150F-2018-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 1.5A SMD
Datasheet
SMD150F-2018-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Max) 1.5A
Current - Trip (It) 3A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 60 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.343" L x 0.250" W (8.70mm x 6.35mm)
Thickness (Max) 0.118" (3.00mm)
Win Source Part Number 125847-SMD150F-2018-2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMD150F-2018-2 CAD Model

Description

The 125847-SMD150F-2018-2 from Littelfuse Inc. is a polymeric circuit protection device.

  • Thickness (Max): 0.118" (3.00mm)
  • Voltage - Max: 15V
  • Current - Max: 40A
  • Current Hold: 1.5A
  • Current Trip: 3A
  • Time to Trip: 5s
  • Packaging: Reel
  • Mounting Type: SMD (SMT)
  • Resistance - Initial: 60 mOhm
  • Application: Circuit Protection
