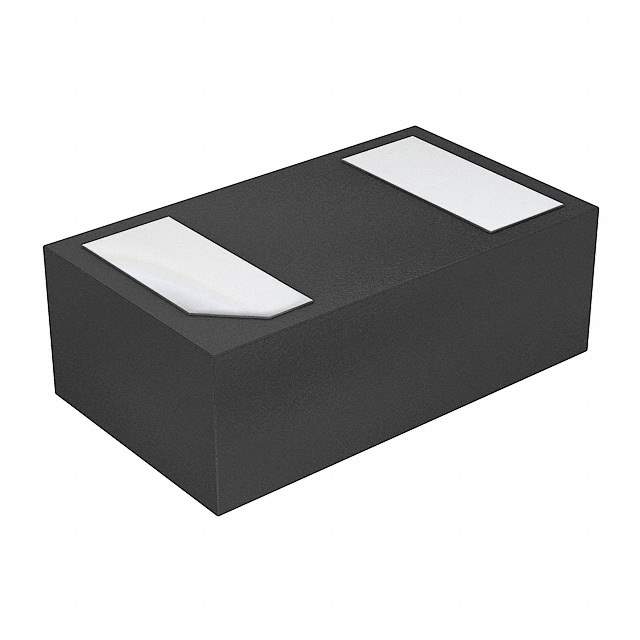

SESD0402X1BN-0015-096

Name: SESD0402X1BN-0015-096
Brand: Littelfuse Inc.
SKU: 511918
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SESD0402X1BN-0015-096
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 7VWM 14VC DFN
Datasheet	SESD0402X1BN-0015-096 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	7V (Max)
Minimum Breakdown Voltage	9.6V (Typ)
Max Clamping Voltage	14V (Typ)
Peak Pulse Current(Ippm)	2.5A (8/20μs)
Applications	Automotive, HDMI
Capacitance @ Frequency	0.15pF @ 3GHz
Temperature Range - Operating	-55°C to 125°C (TA)
Mounting	SMD (SMT)
Case / Package	0402
Win Source Part Number	1095187-SESD0402X1BN-0015-096
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian SESD0402X1BN-0015-096 CAD Model

Alternative Products

Description

The SESD0402X1BN-0015-096 from Littelfuse Inc. is a bidirectional Zener-type circuit protection device designed for automotive and HDMI applications.

Type: Bidirectional Zener
Applications: Automotive and HDMI
Mounting: SMD
Capacitance: 0.15pF @ 3GHz
Temperature Range: -55°C to 125°C (TA)
Stand-Off Voltage (Vwm): 7V (Max)
Minimum Breakdown Voltage: 9.6V (Typ)
Maximum Clamping Voltage: 14V (Typ)
Peak Pulse Current: 2.5A (8/20μs)
Supply and Demand Status: Sufficient
