Same model may have multiple batches, images only for reference.

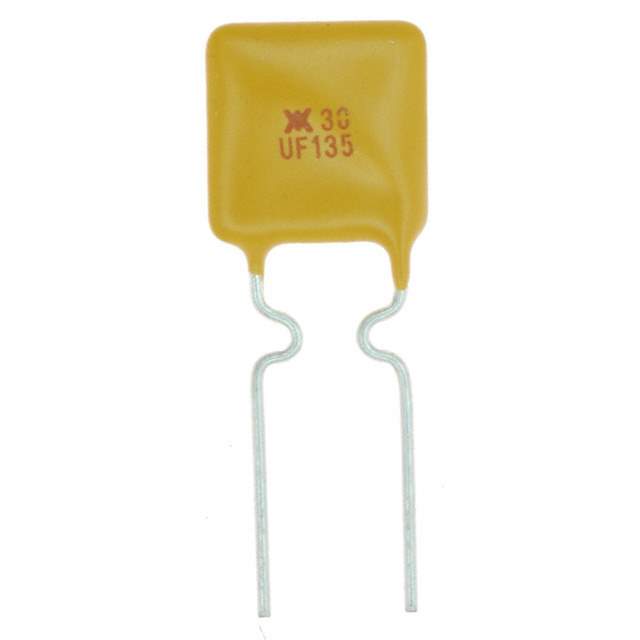

RUEF135-2 Real Image
Same model may have multiple batches, images only for reference.

RUEF135-2

Part No RUEF135-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 1.35A RADIAL / PolySwitch Resettable Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Maximum) 1.35A
Current - Trip (It) 2.7A
Time to Trip 7.3s
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Maximum) 130 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Maximum) 0.532" (13.50mm)
Lead Spacing 0.199" (5.05mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 3,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806789-RUEF135-2
Ultra Librarian 3D Model Ultra Librarian RUEF135-2 CAD Model

Description

The Littelfuse Inc. 806789-RUEF135-2 is a polymeric resettable fuse from Littelfuse Inc..

  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Current Trip: 2.7A
  • Time to Trip: 7.3s
  • Package: Radial, disc
  • Lead Spacing: 0.199" (5.05mm)
  • Approvals: CQC, CSA, TUV, UL
  • Operating Temperature Range: -40°C to 85°C
  • Initial Resistance: 40 mOhms
  • Current Hold: 1.35A
  • Post-Trip Resistance: 130 mOhms
