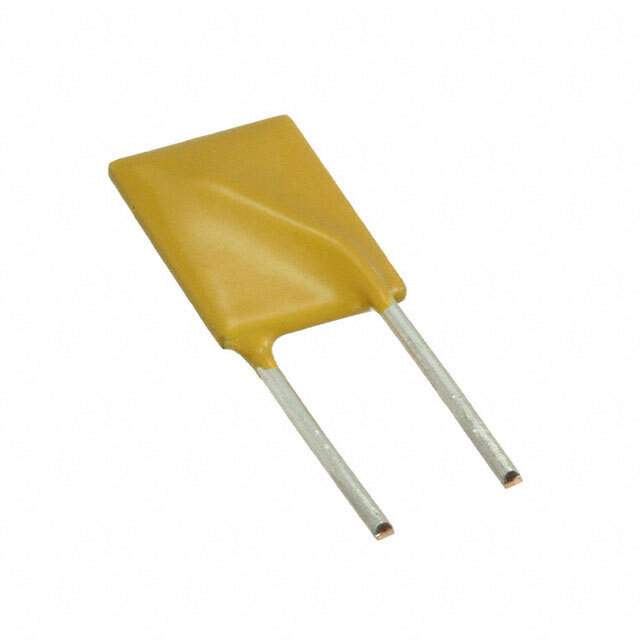

RKEF500-1 Real Image
Same model may have multiple batches, images only for reference.

RKEF500-1

Part No RKEF500-1
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 5A / Poly Switch PTC, Overcurrent Protection Device
Datasheet
RKEF500-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RKEF
Packaging Bulk
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Maximum) 5A
Current - Trip (It) 10A
Time to Trip 28s
Resistance - Initial (Ri) (Minimum) 12 mOhm
Resistance - Post Trip (R1) (Maximum) 50 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.949" L x 0.118" W (24.10mm x 3.00mm)
Height - Seated (Maximum) 1.142" (29.00mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 793249-RKEF500-1
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian RKEF500-1 CAD Model

Description

The RKEF500-1 is a PolySwitch RKEF series polymeric circuit protection product manufactured by Littelfuse Inc.

  • Mounting Style: Through-hole
  • Packaging: Radial disc
  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Current Trip: 10A
  • Time to Trip: 28s
  • Approvals: CSA, TUV, UL
  • Lead Spacing: 0.199" (5.05mm)
  • Dimension: 0.949" L x 0.118" W (24.10mm x 3.00mm)
  • Current Hold: 5A
  • Maximum Resistance: 50 mOhm
  • Height: 1.142" (29.00mm)
  • Halogen-Free Compliant: Yes
  • Supply and Demand Status: Limited
