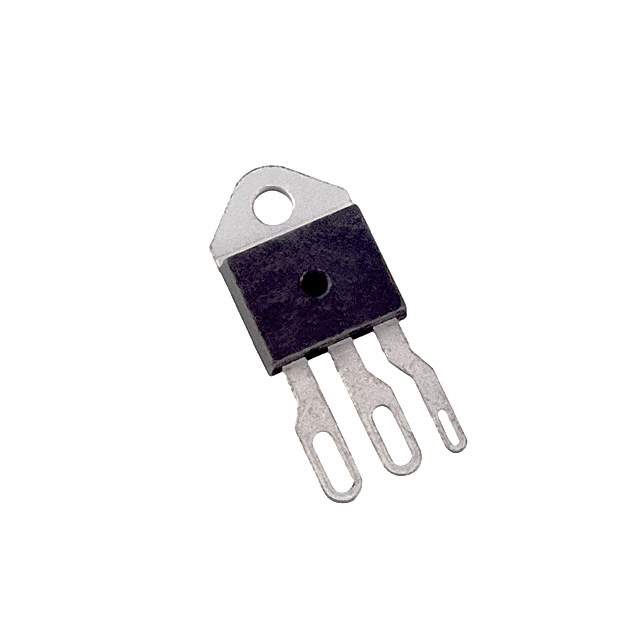

Q8040J7TP Real Image
Same model may have multiple batches, images only for reference.

Q8040J7TP

Part No Q8040J7TP
Manufacturer Littelfuse Inc.
Catalog Triacs
Description TRIAC ALTERNISTOR 800V TO218X / TRIAC 800V 400A 3-Pin(3+Tab) TO-218X Tube
Datasheet
Q8040J7TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube
Triac Type Alternistor - Snubberless
Voltage - Off State 800V
Current - On State (It (RMS)) (Maximum) 40A
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) 335A, 400A
Current - Gate Trigger (Igt) (Maximum) 100mA
Current - Hold (Ih) (Maximum) 100mA
Configuration Single
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Style Through Hole
Package TO-218X-3 (Isolated)
Manufacturer Package TO-218X Isolated
Win Source Part Number 792798-Q8040J7TP
Popularity Medium
Supply and Demand Status Balance
Family Name Q8040J7
Introduction Date July 09, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian Q8040J7TP CAD Model

Description

The Q8040J7TP is a Triac manufactured by Littelfuse Inc.

  • Voltage - Off State: 800V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 335A, 400A
  • Current - On State (It (RMS)) (Maximum): 40A
  • Voltage - Gate Trigger (Vgt) (Maximum): 2V
  • Current - Gate Trigger (Igt) (Maximum): 100mA
  • Current - Hold (Ih) (Maximum): 100mA
  • Package: TO-218X-3 (Isolated)
