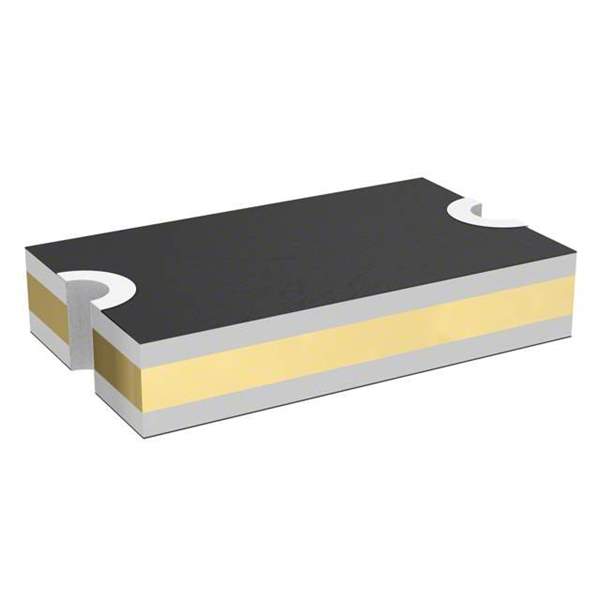

Same model may have multiple batches, images only for reference.

PICOSMDC010S-2

Name: PICOSMDC010S-2
Brand: Littelfuse Inc.
SKU: 505748
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PICOSMDC010S-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH .10A RESET FUSE SMD
Datasheet	PICOSMDC010S-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Polymeric
Voltage - Max	15V
Current - Max	100A
Current - Hold (Ih) (Max)	100mA
Current - Trip (It)	300mA
Time to Trip	600ms
Resistance - Initial (Ri) (Min)	1.5 Ohm
Resistance - Post Trip (R1) (Max)	11 Ohm
Temperature Range - Operating	-40°C to 85°C
Mounting	SMD (SMT)
Dimension	0.083" L x 0.055" W (2.10mm x 1.40mm)
Thickness (Max)	0.039" (1.00mm)
Approvals	CSA, TUV, UL
Win Source Part Number	1089282-PICOSMDC010S-2
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PICOSMDC010S-2 CAD Model

Alternative Products

Description

The Littelfuse Inc. PICOSMDC010S-2 is a polymeric SMD circuit protection device with a voltage max of 15V and a current max of 100A.

Voltage Max: 15V
Current Max: 100A
Current Hold (Ih) Max: 100mA
Current Trip (It): 300mA
Time to Trip: 600ms
Approvals: CSA, TUV, UL
Thickness Max: 0.039" (1.00mm)
Status: Active
Temperature Range: -40°C to 85°C
Category: Circuit Protection
Popularity: Moderate
