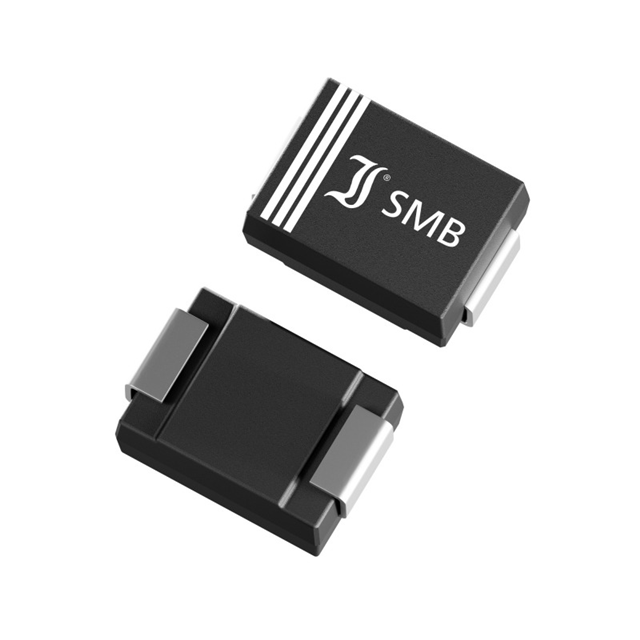

P6SMBJ24A

Part No P6SMBJ24A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 20.5VWM 33.2VC SMB
Datasheet
P6SMBJ24A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 20.5V
Minimum Breakdown Voltage 22.8V
Max Clamping Voltage 33.2V
Peak Pulse Current(Ippm) 18.4A
Power Dissipation - Pd 600W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AA (SMBJ)
Win Source Part Number 109194-P6SMBJ24A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P6SMBJ24A CAD Model

Description

The Littelfuse Inc. 109194-P6SMBJ24A is a high-quality zener diode that belongs to the circuit protection category.

  • Series: SMBJ series
  • Package: DO-214AA (SMBJ)
  • Channel Type: unidirectional
  • Application: general purpose applications
  • Stand-off Voltage: 20.5V
  • Minimum Breakdown Voltage: 22.8V
  • Max Clamping Voltage: 33.2V
  • Peak Pulse Current: 18.4A (10/1000µs)
  • Mounting: SMD (SMT)
  • Status: obsolete (EOL)
