Same model may have multiple batches, images only for reference.

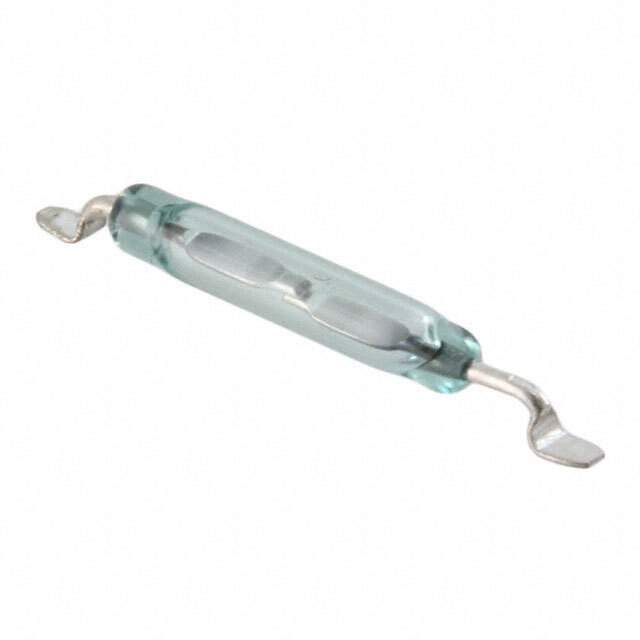

MDSM-10R-10-15 Real Image
Same model may have multiple batches, images only for reference.

MDSM-10R-10-15

Part No MDSM-10R-10-15
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 49 Weeks
Features Glass Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
Manufacturer Littelfuse Inc.
Series MDSM-10
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9960
Other Part Number HE661TR, HE661CT, 1294-MDSM-10R-10-15, HE661DKR
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 884507-MDSM-10R-10-15
Ultra Librarian 3D Model Ultra Librarian MDSM-10R-10-15 CAD Model

Description

The MDSM-10R-10-15 is a glass body reed switch manufactured by Littelfuse Inc.

  • Supply and Demand Status: Limited
  • Package Quantity: 3000 units
  • Mounting Type: Surface Mount
  • Configuration: SPST-NO
  • Operate Range: 10~15AT
  • Power: 10W
  • Current (AC): 350mA (AC)
  • Current (DC): 500mA (DC)
  • Voltage: 140V
  • Estimated Production Lead Time: 49 weeks
