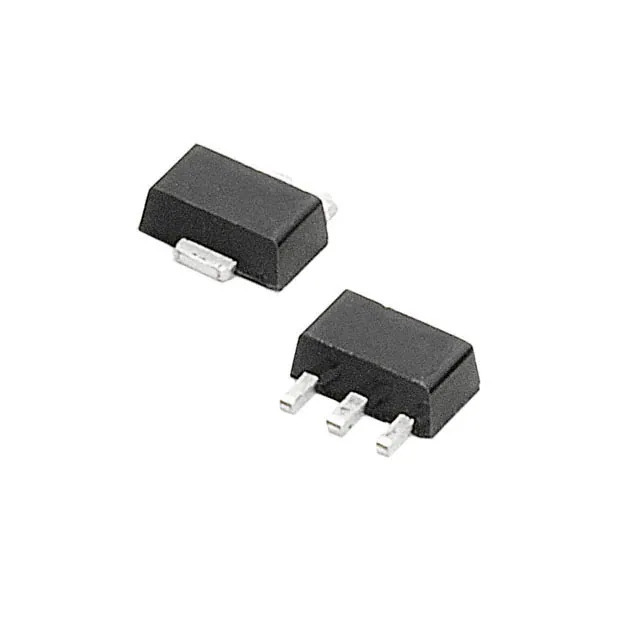

Same model may have multiple batches, images only for reference.

LX807MBRP

Name: LX807MBRP
Brand: Littelfuse Inc.
SKU: 1376660
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LX807MBRP
Manufacturer	Littelfuse Inc.
Catalog	Triacs
Description	TRIAC 0.8A 600V SOT89
Datasheet	LX807MBRP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Thyristors - TRIACs
Mfr	Littelfuse Inc.
Series	LX8
Package	Tape & Reel
Product Status	Active
Triac Type	Logic - Sensitive Gate
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	800 mA
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	8A, 9.5A
Current - Gate Trigger (Igt) (Max)	5 mA
Current - Hold (Ih) (Max)	5 mA
Configuration	Single
Temperature Range - Operating	-40°C ~ 110°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	SOT-89
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.30.0080
Win Source Part Number	1376660-LX807MBRP
Ultra Librarian 3D Model	Ultra Librarian LX807MBRP CAD Model

Description

The 1376660-LX807MBRP is a logic-sensitive gate TRIAC semiconductor device manufactured by Littelfuse Inc.

Configuration: Single
Voltage-Off State: 600V
Maximum Current-On State: 800mA
Maximum Gate Trigger Voltage: 1.3V
Non-Repetitive Surge Current: 8A/9.5A @ 50Hz/60Hz
Mounting: Surface mount
Package: TO-243AA
Operating Temperature: -40°C to 110°C
REACH Unaffected: Yes
