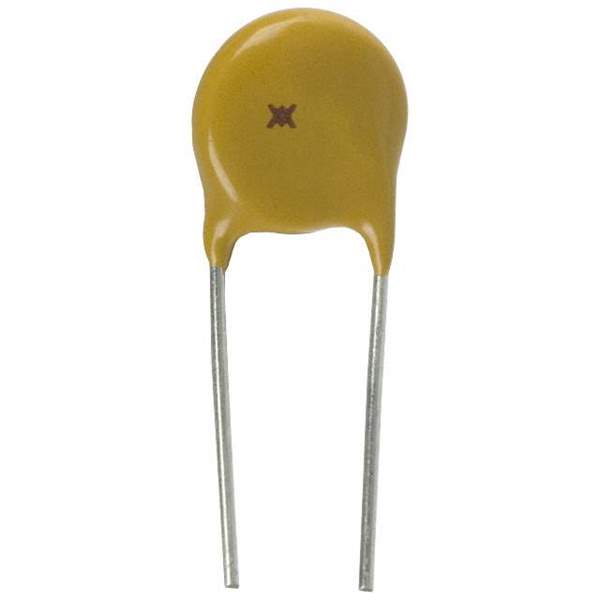

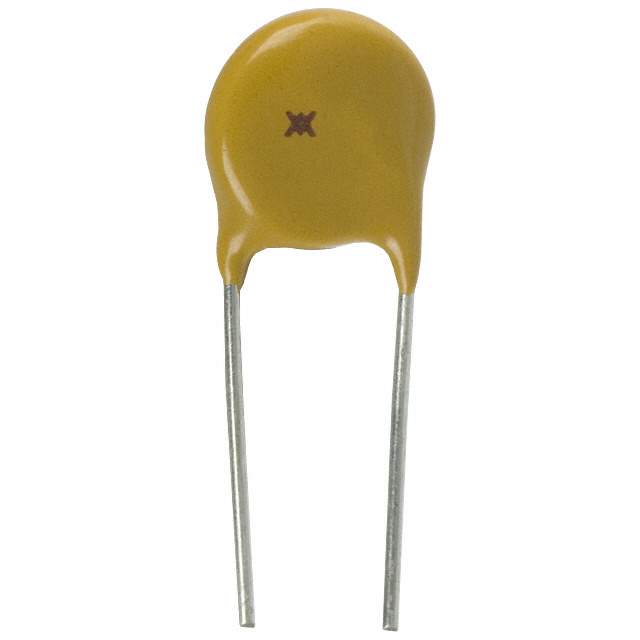

LVR008NS Real Image
Same model may have multiple batches, images only for reference.

LVR008NS

Part No LVR008NS
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 0.08A HOLD
Datasheet
LVR008NS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 1.2A
Current - Hold (Ih) (Max) 80mA
Current - Trip (It) 190mA
Time to Trip 10s
Resistance - Initial (Ri) (Min) 7.4 Ohm
Resistance - Post Trip (R1) (Max) 26 Ohm
Temperature Range - Operating -20°C to 85°C
Mounting Through Hole
Dimension 0.280" Dia x 0.180" W (7.20mm x 4.60mm)
Height - Seated (Max) 0.400" (10.20mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 096505-LVR008NS
Ultra Librarian 3D Model Ultra Librarian LVR008NS CAD Model

Description

The Littelfuse LVR008NS is a polymeric type circuit protection device suitable for use in various applications. It has a high approval rating, having been approved by CQC, CSA, TUV, and UL. It has a Win Source Part Number of 096505-LVR008NS and is manufactured by Littelfuse Inc.

  • Maximum Current: 1.2A
  • Current Trip (It): 190mA
  • Time to Trip: 10 seconds
  • Operating Temperature Range: -20°C to 85°C
