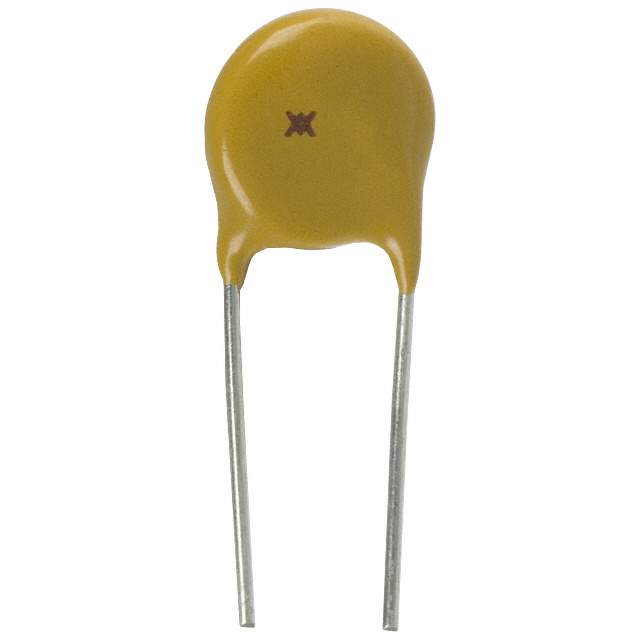

Same model may have multiple batches, images only for reference.

LVR005NS

Name: LVR005NS
Brand: Littelfuse Inc.
SKU: 199136
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LVR005NS
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET 0.05A HOLD
Datasheet	LVR005NS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Bulk
Status	Active
Type	Polymeric
Voltage - Max	240V (265V Int)
Current - Max	1A
Current - Hold (Ih) (Max)	50mA
Current - Trip (It)	120mA
Time to Trip	10s
Resistance - Initial (Ri) (Min)	18.5 Ohm
Resistance - Post Trip (R1) (Max)	65 Ohm
Temperature Range - Operating	-20°C to 85°C
Mounting	Through Hole
Dimension	0.272" Dia x 0.181" W (6.90mm x 4.60mm)
Height - Seated (Max)	0.390" (9.90mm)
Lead Spacing	0.200" (5.08mm)
Approvals	CQC, CSA, TUV, UL
Win Source Part Number	129594-LVR005NS
Ultra Librarian 3D Model	Ultra Librarian LVR005NS CAD Model

Alternative Products

Description

The Littelfuse Inc. LVR005NS polymeric fuse is a reliable and high-quality circuit protection component. With approvals from CQC, CSA, TUV, and UL, this fuse is a safe and trustworthy choice for your electronics projects.

Maximum Voltage: 240V (265V Int)
Maximum Current: 1A
Height: 0.390" (9.90mm)
Mounting Type: Through-hole
Resistance - Initial (Ri) (Min): 18.5 Ohm
Resistance - Post Trip (R1) (Max): 65 Ohm
Operating Temperature Range: -20°C to 85°C
