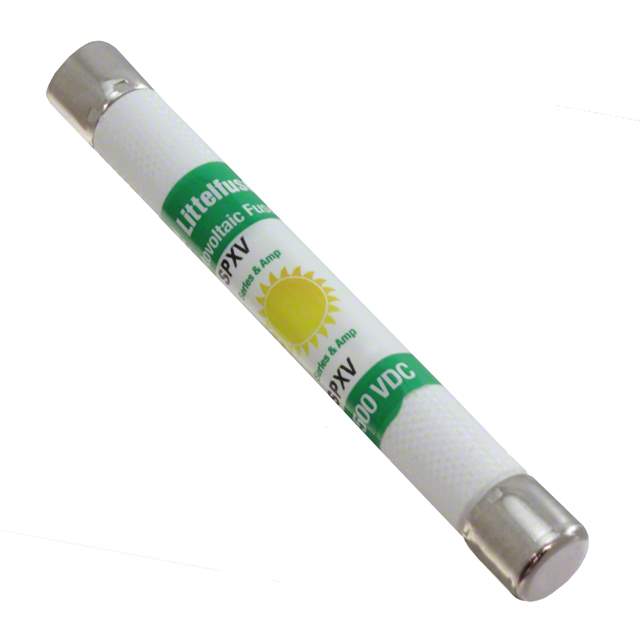

SPXV015.L Real Image
Same model may have multiple batches, images only for reference.

SPXV015.L

Part No SPXV015.L
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Datasheet
SPXV015.L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPXV
Mounting Type Holder
Fuse Type Cartridge
Current Rating (Amps) 15A
Voltage Rating - DC 1.5 kV
Applications Solar (Photovoltaic)
Approval Agency CE, UR
Breaking Capacity @ Rated Voltage 15kA
Package / Case Cartridge, Non-Standard
Dimension 0.406" Dia x 3.333" L (10.30mm x 84.65mm)
Melting I2t 299
DC Cold Resistance 0.0131 Ohms
Other Names SPXV 15A,F12010,-SPXV015.L,SPXV015.L
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1302285-SPXV015.L
Ultra Librarian 3D Model Ultra Librarian SPXV015.L CAD Model

Description

The Littelfuse Inc. 1302285-SPXV015.L is a POWR-GARD® SPXV series cartridge fuse that is specifically designed for solar (photovoltaic) applications.

  • Voltage Rating: 1.5 kV
  • Breaking Capacity: 15kA
  • Current Rating: 15A
  • DC Cold Resistance: 0.0131 Ohms
  • Package: 50 fuses
  • Type: non-standard cartridge type
  • Approved: CE and UR approved
  • Mounting: can be mounted in a holder
  • Response Time: -
  • Melting I2t: 299
