Same model may have multiple batches, images only for reference.

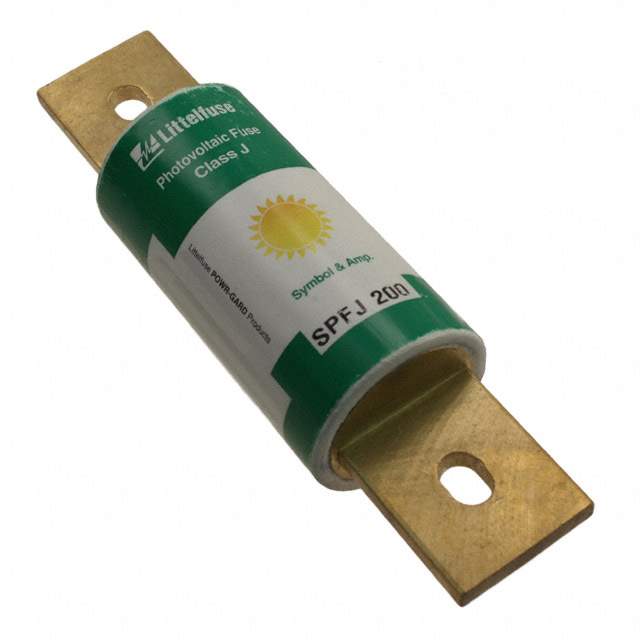

SPFJ200.X Real Image
Same model may have multiple batches, images only for reference.

SPFJ200.X

Part No SPFJ200.X
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Datasheet
SPFJ200.X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPFJ
Mounting Type Holder
Fuse Type Cartridge
Current Rating (Amps) 200A
Voltage Rating - AC 600 V
Voltage Rating - DC 1 kV
Response Time Fast Blow
Applications Solar (Photovoltaic)
Class J
Approval Agency CE, cULus, UL, VDE
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case Cylindrical, Blade Terminals
Dimension 1.500" Dia x 5.670" L (38.10mm x 144.02mm)
Melting I2t 34053
DC Cold Resistance 0.46 mOhms
Other Names SPFJ200X,-1024-SPFJ200.X,F4138,SPFJ 200
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1302318-SPFJ200.X
Ultra Librarian 3D Model Ultra Librarian SPFJ200.X CAD Model

Description

The POWR-GARD SPFJ200.X is a J-type cartridge fuse designed to protect photovoltaic systems from overcurrent events.

  • Voltage Rating: 600V AC and 1kV DC
  • Response Time: Fast blow
  • Breaking Capacity: 200kA AC and 20kA DC
  • DC Cold Resistance: 0.46 mOhms
  • Melting I2t: 34053
  • Package: Cylindrical, blade terminals package
  • Dimension: 1.500" Dia x 5.670" L (38.10mm x 144.02mm)
  • Mounting: Holder mounting
  • Approval Agency: CE, cULus, UL, and VDE
