Same model may have multiple batches, images only for reference.

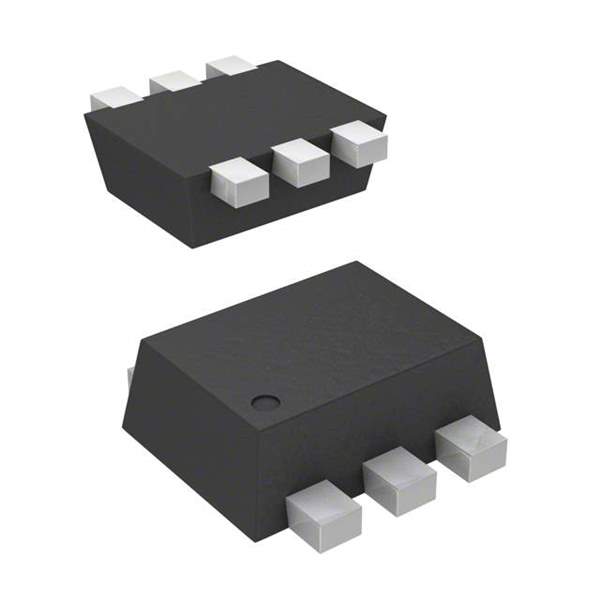

SP3006-02XTG Real Image
Same model may have multiple batches, images only for reference.

SP3006-02XTG

Part No SP3006-02XTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SP3006, SPA®
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 6V (Max)
Voltage - Breakdown (Min) 9V
Voltage - Clamping (Max) @ Ipp 15V (Typ)
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case SOT-563, SOT-666
Supplier Device Package SOT-563
Other Names F6274CT,-SP3006-02XTG,F6274DKR,F6274TR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1299993-SP3006-02XTG
Ultra Librarian 3D Model Ultra Librarian SP3006-02XTG CAD Model

Description

The Littelfuse Inc. SP3006-02XTG is a bidirectional Zener diode with two channels.

  • Voltage Reverse Standoff: 6V (max)
  • Voltage Breakdown: 9V (min)
  • Voltage Clamping: 15V (typ) @ Ipp
  • Peak Pulse Current: 2A (8/20µs)
  • Package: SOT-563 or SOT-666
  • Popularity: Medium
  • Standard Package: 3,000 units
  • Manufacturer: Littelfuse Inc.
