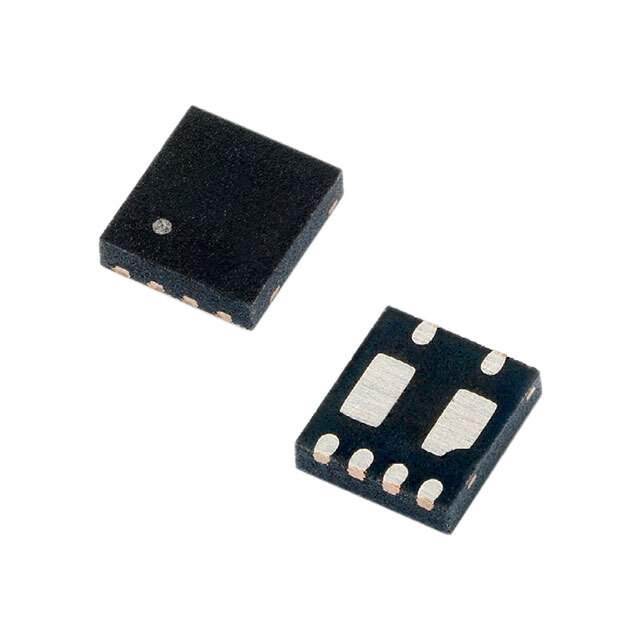

SP1555-01UTG

Part No SP1555-01UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 15VWM 29.5VC 6UDFN / 29.5V (Typ) Clamp 120A (8/20µs) Ipp Tvs Diode Surface Mount 6-µDFN (1.8x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SP1555, SPA®
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 17.5V
Voltage - Clamping (Max) @ Ipp 29.5V (Typ)
Current - Peak Pulse (10/1000µs) 120A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 800pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 6-UFDFN Exposed Pad
Supplier Device Package 6-µDFN (1.8x2)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 1349472-SP1555-01UTG
Ultra Librarian 3D Model Ultra Librarian SP1555-01UTG CAD Model

Description

The 1349472-SP1555-01UTG is a TVS (Transient Voltage Suppressor) diode from Littelfuse's SP1555 and SPA® series.

  • Manufacturer: Littelfuse
  • Product Name: 1349472-SP1555-01UTG
  • Series: SP1555, SPA®
  • Type: Unidirectional
  • Voltage Reverse Standoff: 15V
  • Voltage Breakdown: 17.5V
  • Capacitance: 800pF @ 1MHz
  • Peak Pulse Current: 120A (8/20µs)
  • Package: Tape & Reel
  • Standard Package: 3,000
  • Package/Case: 6-UFDFN Exposed Pad
  • Supplier Device Package: 6-µDFN (1.8x2)
  • Operating Temperature: -40°C to 125°C (TA)
  • Application: General Purpose
