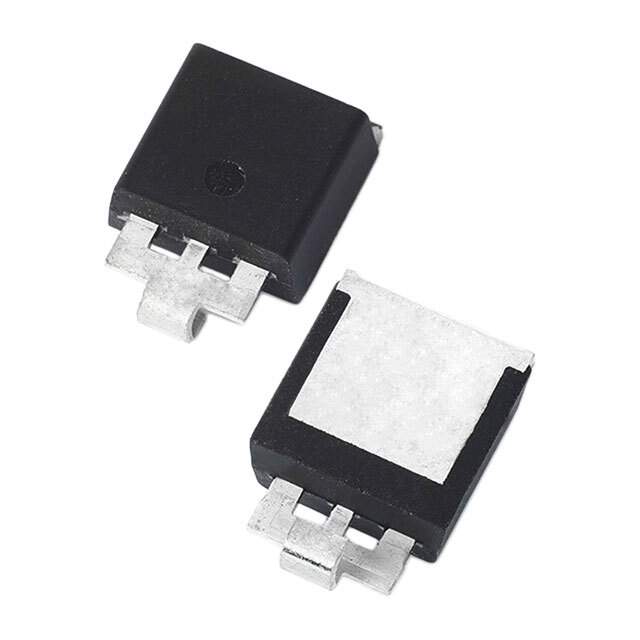

Same model may have multiple batches, images only for reference.

SLD8S15A

Name: SLD8S15A
Brand: Littelfuse Inc.
SKU: 1300861
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SLD8S15A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Datasheet	SLD8S15A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, SLD8S
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15V
Voltage - Breakdown (Min)	16.7V
Voltage - Clamping (Max) @ Ipp	24.4V
Current - Peak Pulse (10/1000µs)	286A
Power - Peak Pulse	7000W (7kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Package / Case	Nonstandard SMD
Supplier Device Package	SMTO-263
Other Names	-SLD8S15A,F8149DKR,F8149CT,F8149TR
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1300861-SLD8S15A
Ultra Librarian 3D Model	Ultra Librarian SLD8S15A CAD Model

Alternative Products

Description

The Littelfuse Inc. TVS diode is a high-quality product for circuit protection applications.

Type: Zener
Voltage - Reverse Standoff: 15V
Voltage - Breakdown: 16.7V
Voltage - Clamping (Vc): 24.4V @ 7000W (7kW)
Current - Peak Pulse (Ipp): 286A @ 10/1000µs
Channel: Unidirectional
Application: Automotive
Package: Nonstandard SMD
Standard Package: 500
Temperature Range: -55°C to 175°C (TJ)
AEC-Q101 Compliant: Yes
