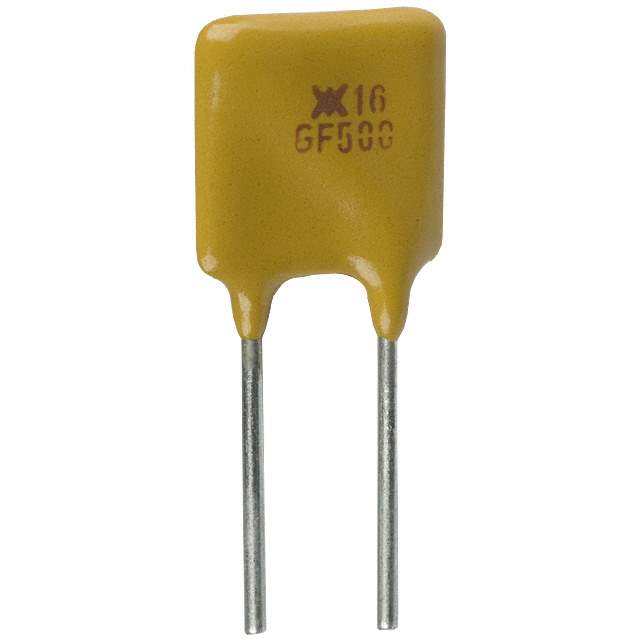

Same model may have multiple batches, images only for reference.

RGEF500-AP

Name: RGEF500-AP
Brand: Littelfuse Inc.
SKU: 1315872
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RGEF500-AP
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	RGEF500-AP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, RGEF
Package	Cut Tape (CT),Tape & Box (TB)
Type	Polymeric
Voltage - Max	16V
Current - Max	100 A
Current - Hold (Ih) (Max)	5 A
Current - Trip (It)	8.5 A
Time to Trip	2 s
Resistance - Initial (Ri) (Min)	15 mOhms
Resistance - Post Trip (R1) (Max)	34 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max)	0.563" (14.30mm)
Lead Spacing	0.199" (5.05mm)
Approval Agency	CSA, TUV, UL
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1315872-RGEF500-AP
Ultra Librarian 3D Model	Ultra Librarian RGEF500-AP CAD Model

Alternative Products

Description

The RGEF500-AP is a PolySwitch® resettable fuse produced by Littelfuse Inc. It is designed for circuit protection and has a maximum voltage rating of 16V and a maximum current rating of 100 A. The current hold (Ih) for this fuse is 5 A and the current trip (It) is 8.5 A. The RGEF500-AP has a time to trip of 2 s. It has a radial, disc package and is mounted through hole. The Win Source Part Number for this product is 1315872.
