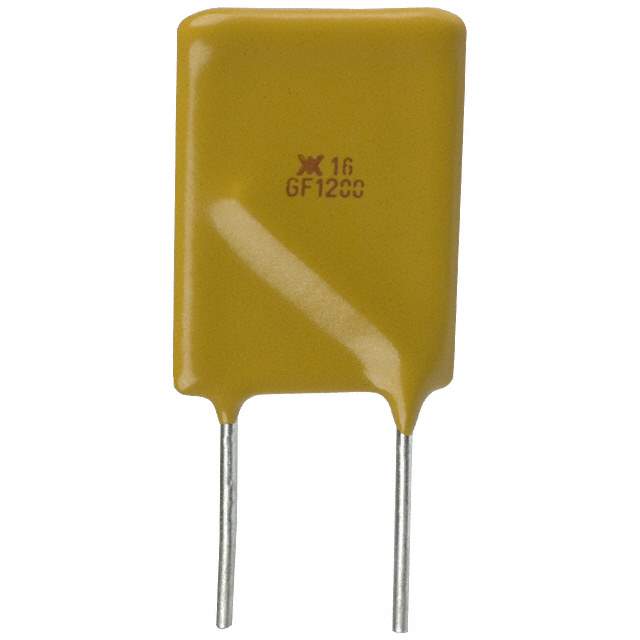

RGEF1200-1 Real Image
Same model may have multiple batches, images only for reference.

RGEF1200-1

Part No RGEF1200-1
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Datasheet
RGEF1200-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RGEF
Package Bag
Type Polymeric
Voltage - Max 16V
Current - Max 100 A
Current - Hold (Ih) (Max) 12 A
Current - Trip (It) 20.4 A
Time to Trip 7.5 s
Resistance - Initial (Ri) (Min) 3.3 mOhms
Resistance - Post Trip (R1) (Max) 8.6 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.670" L x 0.115" W (16.95mm x 2.90mm)
Height - Seated (Max) 1.102" (28.00mm)
Lead Spacing 0.400" (10.15mm)
Approval Agency CSA, TUV, UL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1315873-RGEF1200-1
Ultra Librarian 3D Model Ultra Librarian RGEF1200-1 CAD Model

Description

The PolySwitch RGEF1200-1 is a PTC resettable fuse that is part of the PolySwitch series by Littelfuse Inc. It is a through-hole mounting type and has a radial, disc package/case. The operating temperature range is -40°C to 85°C, and the voltage max is 16V. The PolySwitch RGEF1200-1 has a current max of 100A and a current hold (Ih) max of 12A. The current trip (It) is 20.4A, and the time to trip is 7.5 seconds. It is approved by CSA, TUV, and UL, making it a reliable and safe component for various electronic applications.
