Same model may have multiple batches, images only for reference.

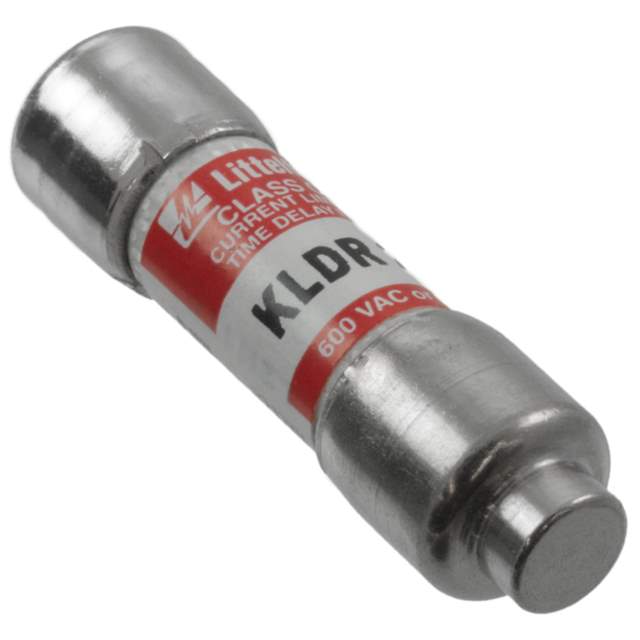

KLDR005.T Real Image
Same model may have multiple batches, images only for reference.

KLDR005.T

Part No KLDR005.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 5A 600VAC/300VDC / 5A 600 V AC 300 V DC Fuse Cartridge Requires Holder
Datasheet
KLDR005.T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 5A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1345338-KLDR005.T
Ultra Librarian 3D Model Ultra Librarian KLDR005.T CAD Model

Description

The Littelfuse POWR-GARD KLDR005.T is an electrical specialty fuse that is used in circuit protection.

  • Series: KLDR
  • Package: Bulk
  • Type: Cartridge
  • Voltage Rating (AC): 600 V
  • Voltage Rating (DC): 300 V
  • Response Time: Slow Blow
  • Breaking Capacity (AC): 200kA
  • Breaking Capacity (DC): 20kA
  • Size/Dimension: 0.406 inches Dia x 1.500 inches L (10.30mm x 38.10mm)
  • Application: Transformer Protection
  • Class: CC
  • Standard Package: 10
  • Mounting: Requires Holder
  • Package/Case: 5AG, 10mm x 38mm (Midget)
  • Current Rating: 5A
  • HTSUS Code: 8536.10.0040
  • Status: Obsolete
  • Approvals: CE, CSA, and UL
