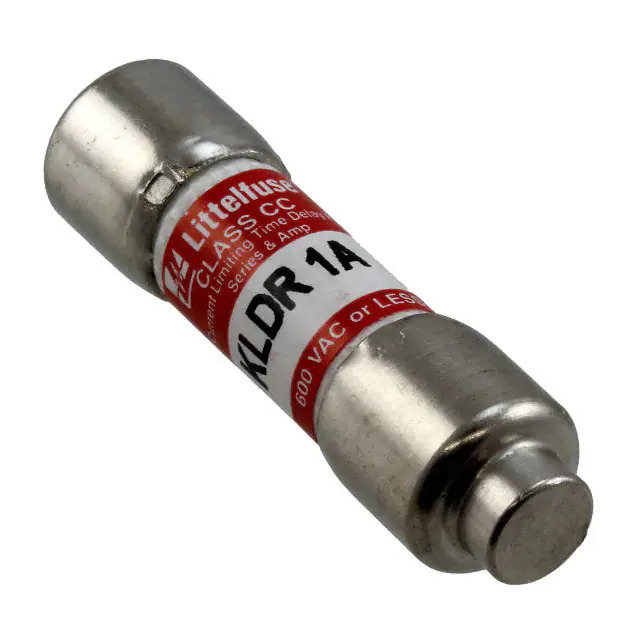

KLDR001.TXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

KLDR001.TXP

Part No KLDR001.TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 1A 600VAC/300VDC
Datasheet
KLDR001.TXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 1A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Features -
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1378743-KLDR001.TXP
Ultra Librarian 3D Model Ultra Librarian KLDR001.TXP CAD Model

Description

The 1378743-KLDR001.TXP is a midget-sized fuse from Littelfuse Inc.'s POWR-GARD® KLDR series.

  • Current Rating: 1A
  • Voltage Rating: 600V AC and 300V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 200kA AC and 20kA DC @ rated voltage
  • Application: Transformer Protection
  • Package/Case: 5AG, 10mm x 38mm (Midget)
  • Mounting Type: Holder
  • Approvals: CE, CSA, UL
