Same model may have multiple batches, images only for reference.

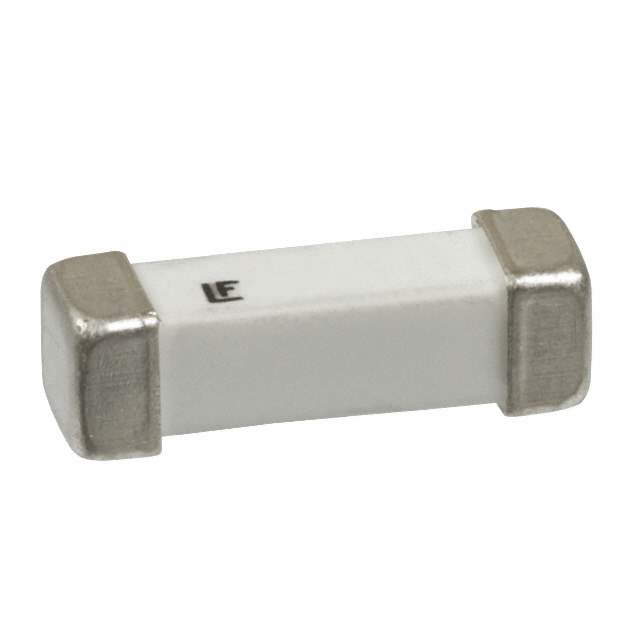

F0500TRP Real Image
Same model may have multiple batches, images only for reference.

F0500TRP

Part No F0500TRP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE BRD MNT 500MA 600VAC/80VDC
Datasheet
F0500TRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount
Current Rating 500mA
Voltage Rating - AC 600V
Voltage Rating - DC 80V
Response Time Slow
Applications Telecom
Approvals CSA, UR
Temperature Range - Operating -55°C to 125°C
Breaking Capacity @ Rated Voltage 60A AC, 100A DC
Mounting SMD (SMT)
Dimension 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)
Nominal Melting - I2t 0.84
Nominal Cold Resistance 0.56 Ohm
Win Source Part Number 204000-F0500TRP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian F0500TRP CAD Model

Description

Product Overview

The F0500TRP is a robust surface-mount diode known for its versatile use in signal rectification and switching applications.

Features and Benefits

  • Voltage Rating: 500V
  • Current Rating: 0.1A to 1A range
  • Fast Reverse Recovery
  • A compact profile suitable for high-density circuit designs

This diode ensures efficiency in converting AC to DC signals while minimizing energy loss.

Applications

  • Signal Rectification
  • Switching Circuits
  • Power Supplies
  • Consumer Electronics
