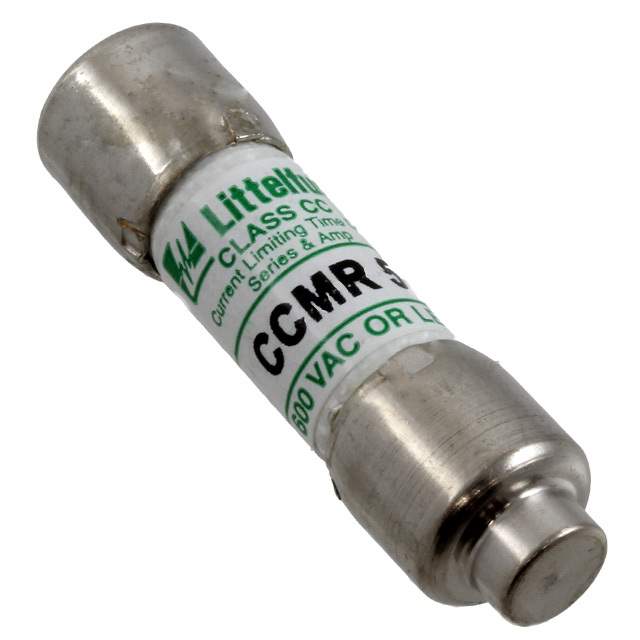

CCMR015.TXP Real Image
Same model may have multiple batches, images only for reference.

CCMR015.TXP

Part No CCMR015.TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 15A 600VAC/500VDC
Datasheet
CCMR015.TXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Fuse Type Cartridge
Current Rating 15A
Voltage Rating - AC 600V
Voltage Rating - DC 500V
Response Time Slow
Applications Motor Protection
Class CC
Approvals CE, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Mounting Clip / Holder
Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Win Source Part Number 1028084-CCMR015.TXP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CCMR015.TXP CAD Model

Description

The Littelfuse CCMR015.TXP is a cartridge type fuse commonly used for motor protection.

  • Manufacturer: Littelfuse
  • Type: Cartridge Fuse
  • Application: Motor Protection
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Current Rating: 15A
  • Voltage Rating: 600V AC and 500V DC
  • Response Time: Slow
  • Breaking Capacity: 200kA AC and 20kA DC @ Rated Voltage
  • Approvals: CE and UL
  • Mounting: Clip/Holder
  • Dimension: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
