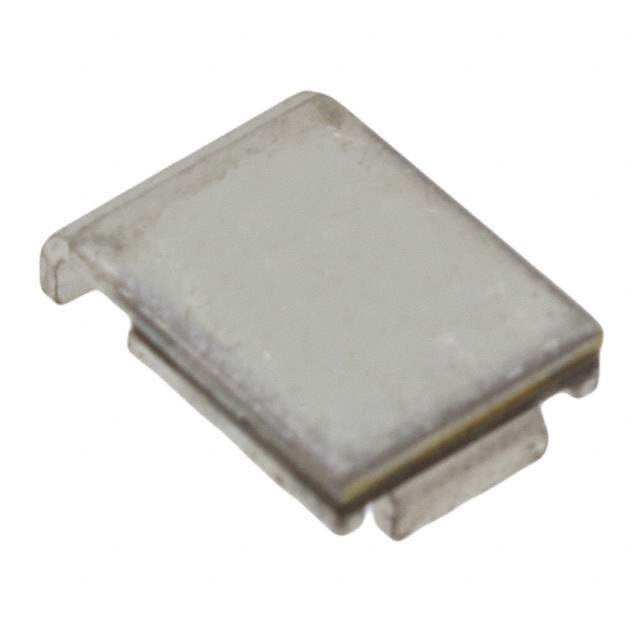

AHS200-2 Real Image
Same model may have multiple batches, images only for reference.

AHS200-2

Part No AHS200-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 4A SMD
Datasheet
AHS200-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 70A
Current - Hold (Ih) (Max) 2A
Current - Trip (It) 4A
Time to Trip 13.4s
Resistance - Initial (Ri) (Min) 50 mOhm
Resistance - Post Trip (R1) (Max) 140 mOhm
Temperature Range - Operating -40°C to 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.343" L x 0.250" W (8.70mm x 6.36mm)
Thickness (Max) 0.118" (3.00mm)
Win Source Part Number 1016376-AHS200-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AHS200-2 CAD Model

Description

The AHS200-2 polymeric fuse is a high-quality component from Littelfuse Inc. that offers reliable protection for your circuits.

  • AEC-Q200 Rating: Yes
  • Maximum Voltage: 16V
  • Maximum Current: 70A
  • Current Hold: 2A
  • Trip Current: 4A
  • Time to Trip: 13.4s
  • Application: Circuit Protection
  • Temperature Range: -40°C to 125°C
