Same model may have multiple batches, images only for reference.

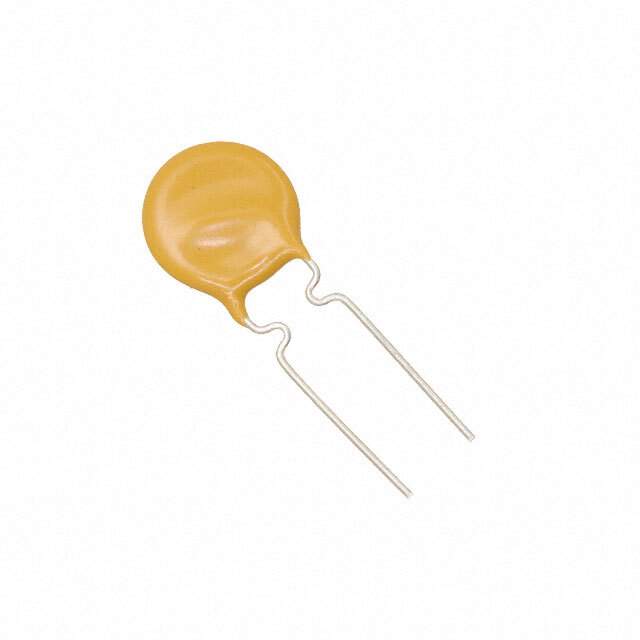

AHRF100 Real Image
Same model may have multiple batches, images only for reference.

AHRF100

Part No AHRF100
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch Resettable Devices Automotive Devices | PTC RESET FUSE 30V 1A RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Maximum) 1A
Current - Trip (It) 1.9A
Time to Trip 6.2s
Resistance - Initial (Ri) (Minimum) 150 mOhms
Resistance - Post Trip (R1) (Maximum) 430 mOhms
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.382" Dia x 0.118" T (9.70mm x 3.00mm)
Height - Seated (Maximum) 0.535" (13.60mm)
Lead Spacing 0.199" (5.05mm)
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1143021-AHRF100
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive
Ultra Librarian 3D Model Ultra Librarian AHRF100 CAD Model

Description

The AHRF100 is a polymeric circuit protection component manufactured by Littelfuse Inc.

  • Supply and Demand: Limited
  • Package: 500 units
  • Rated Voltage: 30V
  • Current: 40A
  • Mounting Style: Through-hole
  • Lead Spacing: 0.199" (5.05mm)
  • Operating Temperature: -40°C to 125°C
  • Application: Automotive
