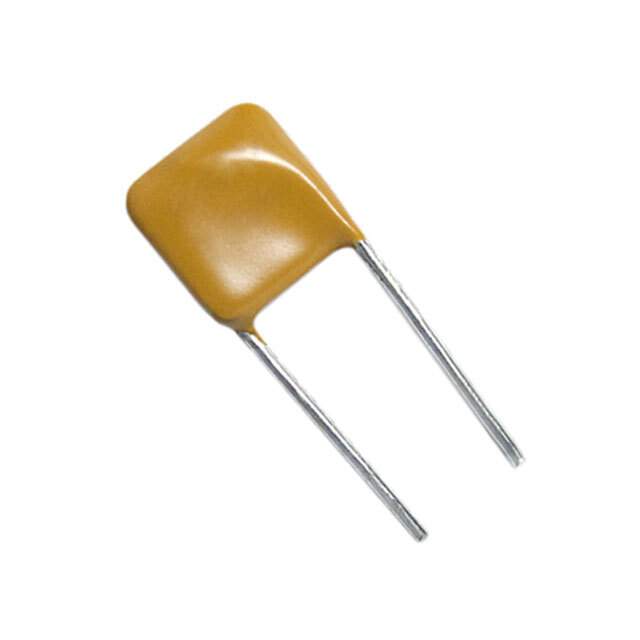

Same model may have multiple batches, images only for reference.

AHEF750

Name: AHEF750
Brand: Littelfuse Inc.
SKU: 768363
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AHEF750
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET 7.5A HOLD / PTC Resettable Fuse 7.5A(hold) 15A(trip) 32VDC 100A 6.5W 13s 0.0074Ohm Radial 21.1 X 3.8 X 24.9mm Bag Automotive
Datasheet	AHEF750 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	PolySwitch, AHEF
Packaging	Bulk
Type	Polymeric
Voltage - Max	32V
Current - Max	100A
Current - Hold (Ih) (Maximum)	7.5A
Current - Trip (It)	15A
Time to Trip	13s
Resistance - Initial (Ri) (Minimum)	7.4 mOhm
Resistance - Post Trip (R1) (Maximum)	23 mOhm
Operating Temperature Range	-40°C ~ 125°C
Ratings	AEC-Q200
Mounting Style	Through Hole
Package	Radial, Disc
Dimension	0.830" L x 0.150" W (21.10mm x 3.80mm)
Height - Seated (Maximum)	0.980" (24.90mm)
Lead Spacing	0.400" (10.15mm)
Win Source Part Number	768363-AHEF750
Popularity	Medium
Supply and Demand Status	Limited
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian AHEF750 CAD Model

Alternative Products

Description

The Littelfuse Inc. PolySwitch AHEF series radial, disc type polymeric circuit protection device.

Voltage Rating: 32V
Current Rating: 100A
Current-Trip (It): 15A
Time to Trip: 13s
Family Name: AHEF
Categories: Circuit Protection
Lead Spacing: 0.400" (10.15mm)
Resistance - Initial (Ri) (minimum): 7.4 mOhm
Resistance - Post Trip (R1) (maximum): 23 mOhm
Operating Temperature: -40°C to 125°C
Introduction Date: Not Available
EOL Date: 2027
ECCN: EAR99
Country of Origin: China
Supply and Demand Status: Limited
