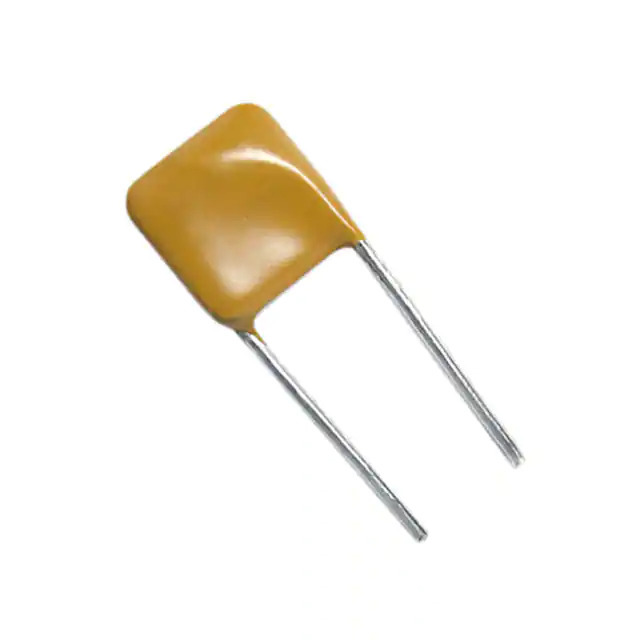

Same model may have multiple batches, images only for reference.
AHEF300 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

AHEF300

Part No AHEF300
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 32V 3A RADIAL / Polymeric PTC Resettable Fuse 32V 3 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, AHEF
Package Bag
Product Status Active
Type Polymeric
Voltage - Max 32V
Current - Hold (Ih) (Max) 3 A
Current - Trip (It) 6 A
Current - Max 100 A
Time to Trip 5 s
Resistance - Initial (Ri) (Min) 35 mOhms
Resistance - Post Trip (R1) (Max) 110 mOhms
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.402" L x 0.150" W (10.20mm x 3.80mm)
Height - Seated (Max) 0.610" (15.50mm)
Thickness (Max) -
Lead Spacing 0.200" (5.08mm)
Approval Agency -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 1361616-AHEF300
Ultra Librarian 3D Model Ultra Librarian AHEF300 CAD Model

Description

The 1361616-AHEF300 is a PTC resettable fuse from Littelfuse Inc.

  • Series: PolySwitch® AHEF
  • Operating Temperature Range: -40°C to 125°C
  • Maximum Current Rating: 100A
  • Maximum Voltage Rating: 32V
  • Trip Current: 6A
  • Time to Trip: 5 seconds
  • Initial Resistance: 35 mOhms
  • Post-Trip Resistance: 110 mOhms
