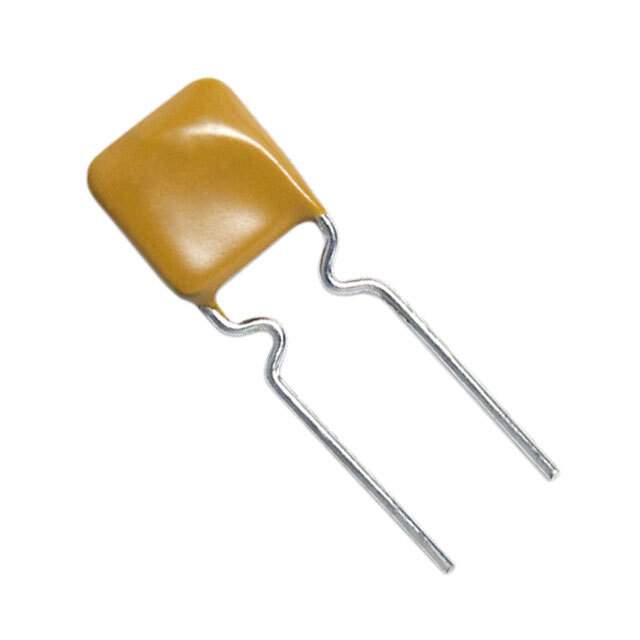

AHEF070 Real Image
Same model may have multiple batches, images only for reference.

AHEF070

Part No AHEF070
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 32V 700MA RADIAL / PolySwitch Resettable Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 32V
Current - Max 100A
Current - Hold (Ih) (Maximum) 700mA
Current - Trip (It) 1.4A
Time to Trip 3.2s
Resistance - Initial (Ri) (Min) 230 mOhms
Resistance - Post Trip (R1) (Maximum) 800 mOhms
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.272" L x 0.118" W (6.90mm x 3.00mm)
Height - Seated (Maximum) 0.425" (10.80mm)
Lead Spacing 0.118" (3.00mm)
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804930-AHEF070
Ultra Librarian 3D Model Ultra Librarian AHEF070 CAD Model

Description

The Littelfuse Inc. AHEF070 is a polymeric fuse with a through-hole mounting style.

  • Mounting: Through-hole
  • Maximum Voltage: 32V
  • Current: 100A
  • Current-Trip (It): 1.4A
  • Time to Trip: 3.2s
  • Initial Resistance (Ri): 230 mOhms (minimum)
  • Package: Radial, disc
  • Manufacturer Pack Quantity: 500
