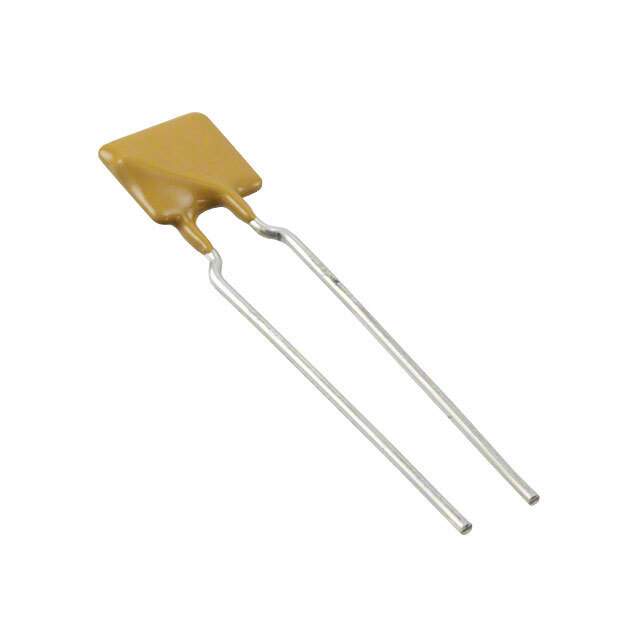

AGRF1000 Real Image
Same model may have multiple batches, images only for reference.

AGRF1000

Part No AGRF1000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 10A RADIAL / PolySwitch™ Resettable Device Short Form Catalog
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 10A
Current - Trip (It) 18.5A
Time to Trip 7s
Resistance - Initial (Ri) (Min) 3.4 mOhms
Resistance - Post Trip (R1) (Maximum) 10.2 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Maximum) 1.012" (25.70mm)
Lead Spacing 0.199" (5.05mm)
Manufacturer Pack Quantity 250
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806673-AGRF1000
Ultra Librarian 3D Model Ultra Librarian AGRF1000 CAD Model

Description

The Littelfuse AGRF1000 is a polymeric through-hole fuse with a maximum voltage of 16V and a maximum current of 100A. It has a current trip of 18.5A and a time to trip of 7s.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Trip: 18.5A
  • Time to Trip: 7s
  • Resistance: 3.4 mOhms
  • Current Hold: 10A
  • Packaging: Radial, Disc
  • Lead Spacing: 0.199" (5.05mm)
  • Operating Temperature: -40°C to 85°C
  • Package Quantity: 250
