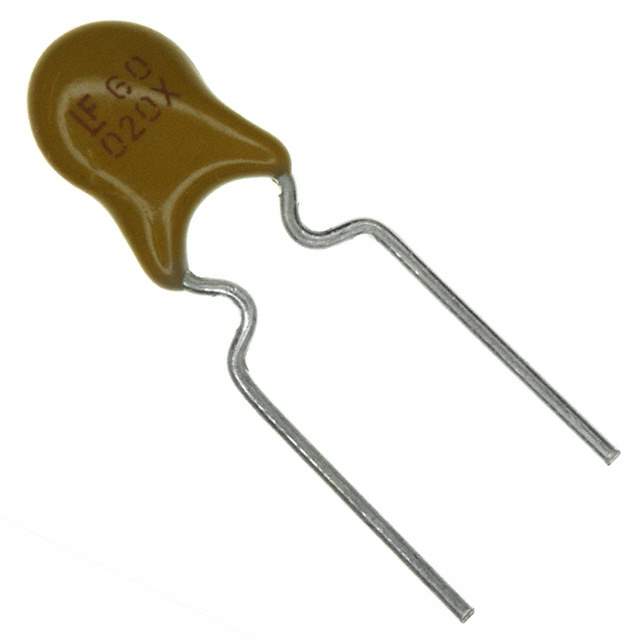

Same model may have multiple batches, images only for reference.

60R020XU

Name: 60R020XU
Brand: Littelfuse Inc.
SKU: 1169323
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	60R020XU
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 200MA RADIAL / Polymeric PTC Resettable Fuse 60V 200 mA Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 60R
Package	Bulk
Type	Polymeric
Voltage - Max	60V
Current - Max	40 A
Current - Hold (Ih) (Max)	200 mA
Current - Trip (It)	400 mA
Time to Trip	2.2 s
Resistance - Initial (Ri) (Min)	1.83 Ohms
Resistance - Post Trip (R1) (Max)	4.4 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max)	0.461" (11.70mm)
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	-1024-60R020XU,60R020,F2002,060R0020U,060R0020
Standard Package	500
Win Source Part Number	1169323-60R020XU
Ultra Librarian 3D Model	Ultra Librarian 60R020XU CAD Model

Alternative Products

Description

The POLY-FUSE series 60R PTC resettable fuse is a polymeric type of circuit protection device that is designed to provide overcurrent protection in electronic circuits.

Device Type: PTC Resettable Fuse
Technology: Polymeric
Maximum Voltage: 60V
Maximum Current: 40A
Current Hold: 200mA
Current Trip: 400mA
Time to Trip: 2.2 seconds
Mounting Type: Through-Hole
Package/Case: Radial, Disc, 0.291" diameter x 0.122" thickness (7.40mm x 3.10mm)
Initial Resistance: 1.83 Ohms
Post-Trip Resistance: 4.4 Ohms
Operating Temperature: -40°C ~ 85°C
ECCN: EAR99
Approvals: cURus, TUV
