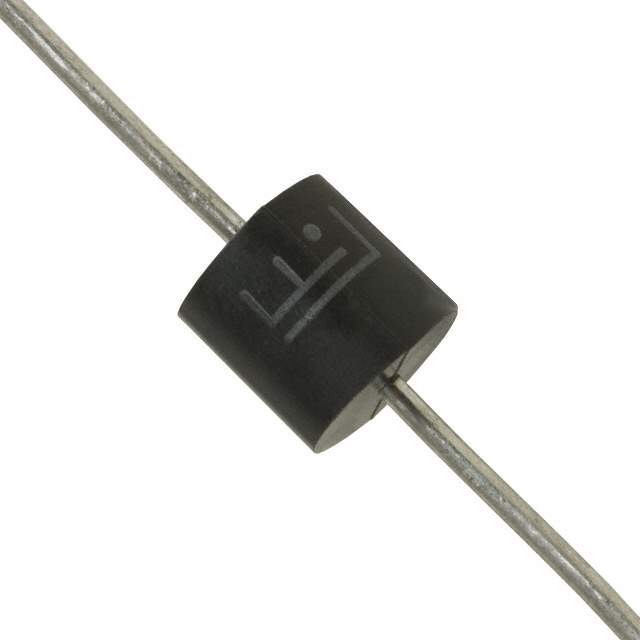

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff 14V
Voltage - Breakdown (Minimum) 15.6V
Voltage - Clamping (Maximum) at Ipp 23.2V
Current - Peak Pulse (10/1000μs) 219.8A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package P600, Axial
Supplier Device Package P600
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129500-5KP14CA
Manufacturer Homepage www.surgecomponents.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5KP14CA CAD Model

Description

The Littelfuse Inc. 5KP14CA is a bidirectional Zener diode that offers power line protection for general-purpose applications.

  • Peak pulse current: 219.8A
  • Peak power: 5000W
  • Temperature range: -55°C to 175°C
  • Package: P600 axial
  • Voltage breakdown: 15.6V
  • Voltage clamping @ Ipp: 23.2V
