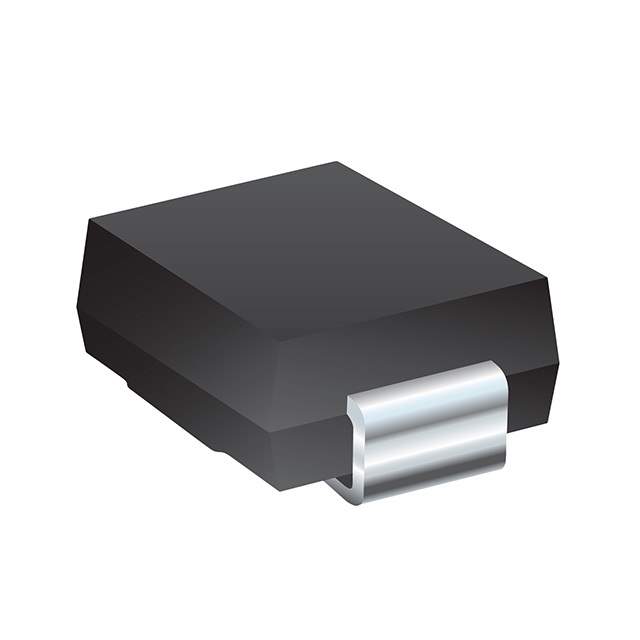

5.0SMDJ33A Real Image
Same model may have multiple batches, images only for reference.

5.0SMDJ33A

Part No 5.0SMDJ33A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 33VWM 53.3VC SMD
Datasheet
5.0SMDJ33A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 33V
Minimum Breakdown Voltage 36.7V
Max Clamping Voltage 53.3V
Peak Pulse Current(Ippm) 93.9A
Power Dissipation - Pd 5000W (5kW)
Applications General Purpose
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AB (SMCJ)
Win Source Part Number 1005849-5.0SMDJ33A
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian 5.0SMDJ33A CAD Model

Description

The Littelfuse 1005849-5.0SMDJ33A is a zener diode designed for use in general purpose applications.

  • Manufacturer: Littelfuse
  • Application: General Purpose
  • Voltage - Stand off (Vwm): 33V
  • Voltage - Breakdown (Min): 36.7V
  • Voltage - Clamping (Max) @ Ipp: 53.3V
  • Current - Peak Pulse (Ippm): 93.9A
  • Power Dissipation (Pd): 5000W (5kW)
  • Package / Case: DO-214AB (SMCJ)
  • Operating Temperature: -65°C to 150°C (TJ)
  • Packaging: Reel-TR
  • Status: Active
  • Application: Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
