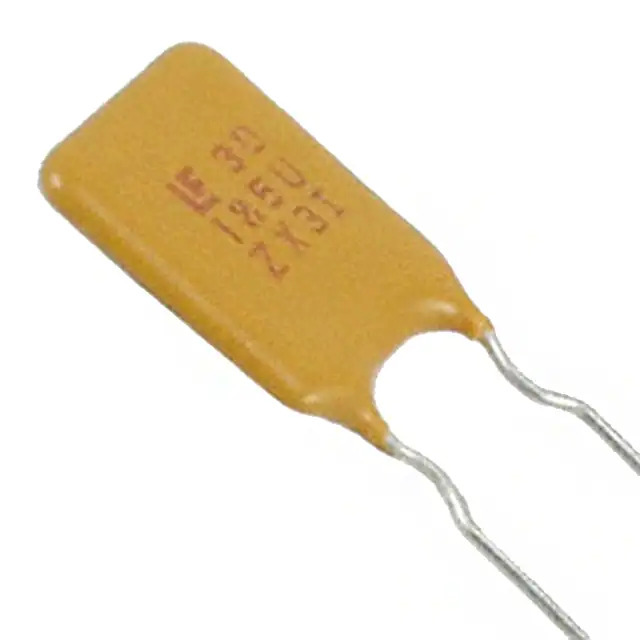

Same model may have multiple batches, images only for reference.
30R185UPR Littelfuse Inc.
Same model may have multiple batches, images only for reference.

30R185UPR

Part No 30R185UPR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 1.85A RADIAL / Polymeric PTC Resettable Fuse 30V 1.85 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 30R
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 1.85 A
Current - Trip (It) 3.7 A
Current - Max 40 A
Time to Trip 8.7 s
Resistance - Initial (Ri) (Min) 30 mOhms
Resistance - Post Trip (R1) (Max) 90 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.402" L x 0.118" W (10.20mm x 3.00mm)
Height - Seated (Max) 0.618" (15.70mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361798-30R185UPR
Ultra Librarian 3D Model Ultra Librarian 30R185UPR CAD Model

Description

The 1361798-30R185UPR is a polymeric PTC resettable fuse from the Littelfuse Inc. POLY-FUSE® 30R series.

  • Temperature Range: -40°C to 85°C
  • Maximum Current Rating: 40A
  • Maximum Voltage: 30V
  • Time to Trip: 8.7 seconds
  • Resistance: 30 mOhms
  • Mounting Type: Through hole
  • Lead Spacing: 0.201" (5.10mm)
  • Approvals: cURus and TUV
  • Product Status: Active
  • REACH: Unaffected
