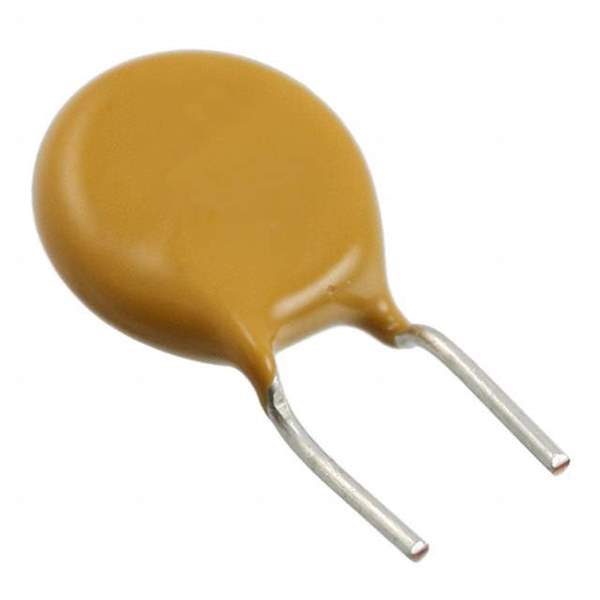

Same model may have multiple batches, images only for reference.

250R180F

Name: 250R180F
Brand: Littelfuse Inc.
SKU: 417737
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	250R180F
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESETBL 60V/250V .180A RAD
Datasheet	250R180F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Bulk
Status	Active
Type	Polymeric
Voltage - Max	60V (250V Int)
Current - Max	10A
Current - Hold (Ih) (Max)	180mA
Current - Trip (It)	650mA
Time to Trip	20s
Resistance - Initial (Ri) (Min)	800 mOhm
Resistance - Post Trip (R1) (Max)	4 Ohm
Temperature Range - Operating	-40°C to 85°C
Mounting	Through Hole
Dimension	0.374" Dia x 0.181" W (9.50mm x 4.60mm)
Height - Seated (Max)	0.472" (12.00mm)
Lead Spacing	0.201" (5.10mm)
Approvals	cURus, TUV
Win Source Part Number	1003428-250R180F
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 250R180F CAD Model

Description

The Littelfuse Inc. 1003428-250R180F is a polymeric type circuit protection component.

Maximum Seated Height: 0.472 inches (12.00mm)
Lead Spacing: 0.201 inches (5.10mm)
Maximum Voltage Rating: 60V (250V Int)
Maximum Current Rating: 10A
Current Hold (Ih): 180mA
Current Trip (It): 650mA
Time to Trip: 20s
Approvals: cURus and TUV
Application: Circuit Protection
Resistance (Initial): 800 mOhm
Resistance (Post Trip): 4 Ohm
Operating Temperature Range: -40°C to 85°C
Diameter: 0.374 inches
Thickness: 0.181 inches (9.50mm x 4.60mm)
Supply and Demand Status: Balanced
