Same model may have multiple batches, images only for reference.

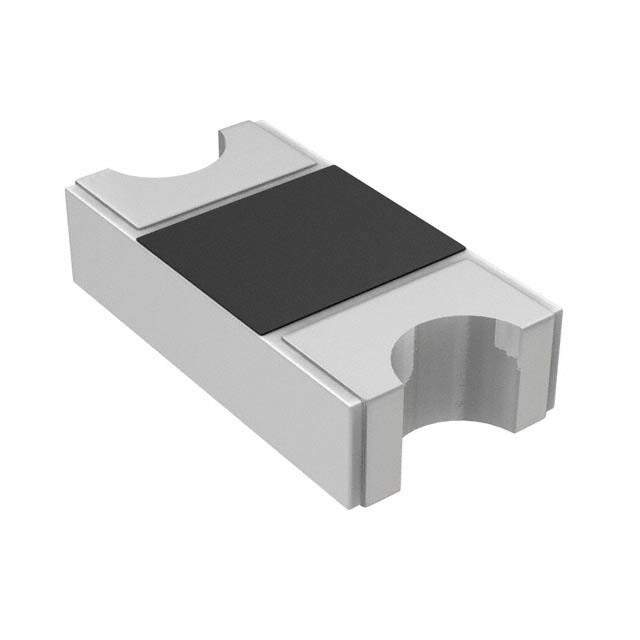

0603L100SLYR Real Image
Same model may have multiple batches, images only for reference.

0603L100SLYR

Part No 0603L100SLYR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 1A 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 50A
Current - Hold (Ih) (Maximum) 1A
Current - Trip (It) 1.8A
Time to Trip 300ms
Resistance - Initial (Ri) (Minimum) 40 mOhms
Resistance - Post Trip (R1) (Maximum) 120 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 0603 (1608 Metric), Concave
Parts Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Maximum) 0.030" (0.75mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 717121-0603L100SLYR
Popularity Low
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 0603L100SLYR CAD Model

Description

The 717121-0603L100SLYR is a polymeric type electronic component designed by Littelfuse Inc.

  • Type: Polymeric
  • Mounting: Surface Mount
  • Maximum Voltage: 6V
  • Maximum Current: 50A
  • Current Trip: 1.8A
  • Time to Trip: 300ms
  • Approvals: cURus and TUV
  • Package: 0603 (1608 Metric), Concave
  • Current Hold: 1A
  • Thickness: 0.030" (0.75mm)
  • Initial Resistance: 40 mOhms
  • Post-Trip Resistance: 120 mOhms
