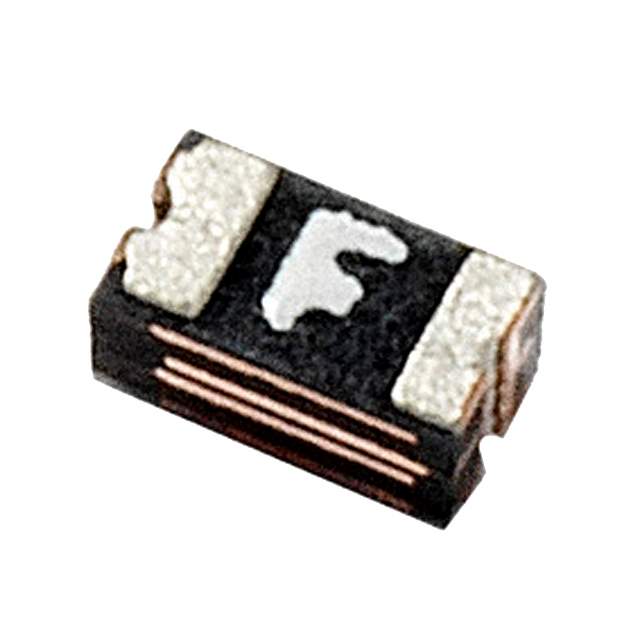

0603L025YR Real Image
Same model may have multiple batches, images only for reference.

0603L025YR

Part No 0603L025YR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 9V .25A SMD 0603
Datasheet
0603L025YR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 9V
Current - Max 40A
Current - Hold (Ih) (Max) 250mA
Current - Trip (It) 550mA
Time to Trip 80ms
Resistance - Initial (Ri) (Min) 500 mOhm
Resistance - Post Trip (R1) (Max) 3 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Max) 0.030" (0.75mm)
Approvals cURus, TUV
Win Source Part Number 1000296-0603L025YR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 0603L025YR CAD Model

Description

The Littelfuse Inc. 435077 is a polymeric circuit protection device with a maximum voltage rating of 9V and a maximum current rating of 40A.

  • Device Type: Polymeric Circuit Protection
  • Maximum Voltage: 9V
  • Maximum Current: 40A
  • Thickness: 0.030" (0.75mm)
  • Mounting: SMD (SMT)
  • Current Hold (Ih): 250mA
  • Current Trip (It): 550mA
  • Time to Trip: 80ms
  • Approvals: cURus and TUV
  • Resistance - Initial (Ri) (Min): 500 mOhm
  • Resistance - Post Trip (R1) (Max): 3 Ohm
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
